Description

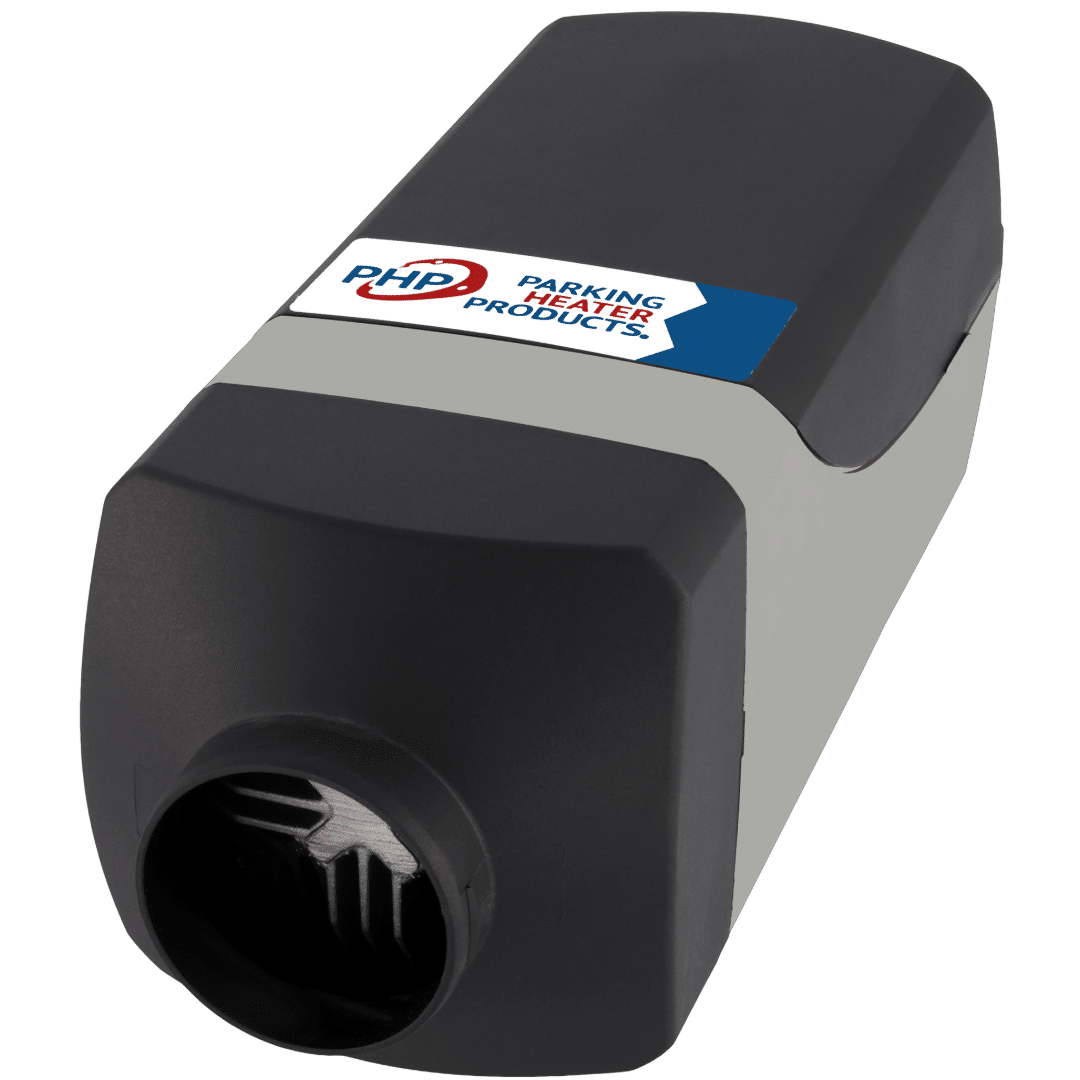

Parking Heater Products P21A Bunk Heater 2kW 12V Diesel.
*HEATER ONLY complete kit here
The PHP P21A is a smaller model with a lower heating capacity compared to the P41A and provides a heat output of 2.2 kW (7,500 BTU/h). The P21A model is often suitable for smaller vehicles and spaces, such as cars, vans, camper vans, and smaller RVs.
P21A Air Heater Performance Specifications:
| Heating Mode | High | Medium | Low |
| Heating Capacity KW (BTU) | 2.0 (6,824) | 1.5 (5,118) | 1.1 (3,753) |
| Fuel Consumption l/h (US Gallon) | 0.21 (0.06) | 0.16 (0.04) | 0.12 (0.03) |
| Air Flow M^3/min (CFM) | 1.65 (58) | 1.19 (42) | 0.72 (25) |
| Power Consumption – WATT | 34 | 23 | 13 |
| Start-up Power – WATT | ≤ 100 |
| Fuel Type | Diesel |
| Nominal Voltage | 12 Volts |
| Lower Voltage Limit | 9 Volt over 20 seconds |
| Upper Voltage Limit | 16.0 Volts over 20 seconds |
| Overheat Protection | 115º C (239º F) |
| Allowed Ambient Temperature | -40º C to 76º C (-40º F to 168º F) |
| Weight | 2.6 kg (7 lbs) |
| Overall Dimensions | Length 335 mm (13.19”)
Width 116 mm (4.57 “) Height 123 mm (4.84”) |
| Above Specifications (± 10%) |
