Description

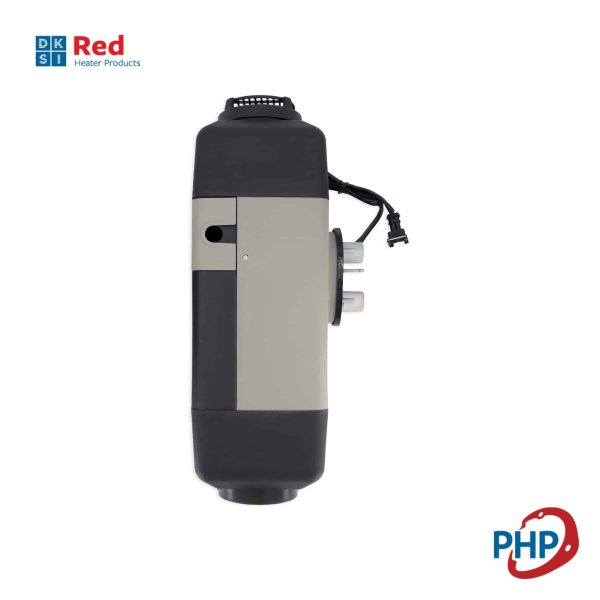

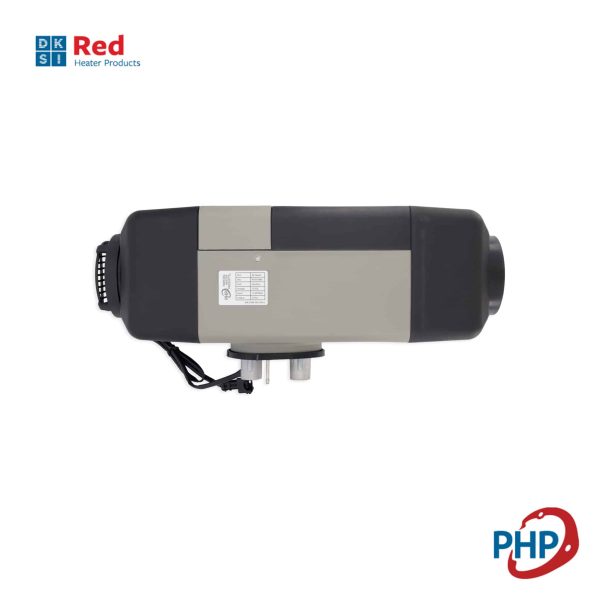

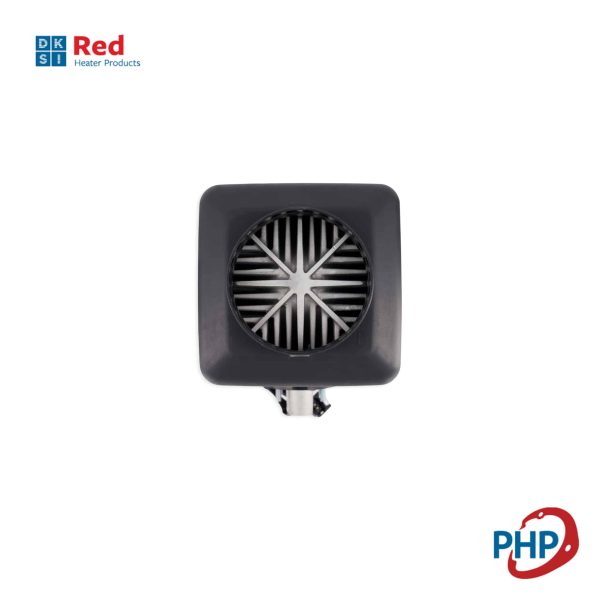

The PH55AG-A heater is designed to provide cabin heating for trucks, RVs, Vans/Buses, and Mobile Workshops by using on-board gasoline fuel and battery systems. Operation is simple and the heater provides a safe and reliable alternative to engine idling or need for electrical plugins This heater is designed to operate continuously at altitudes 5,000 m (16,404’) above sea level.

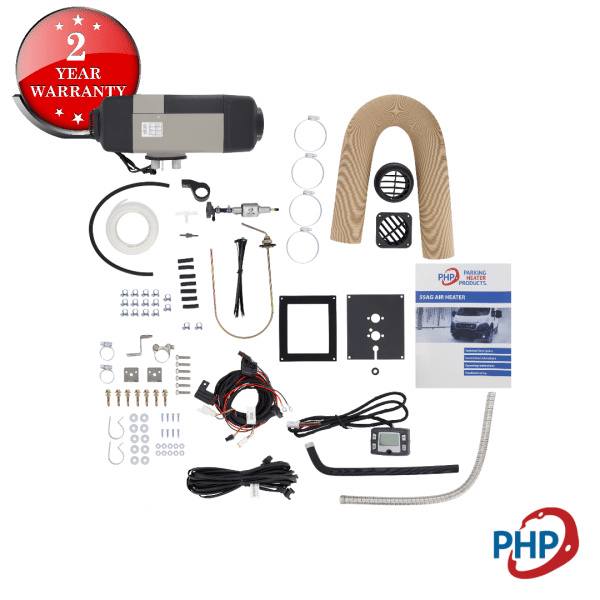

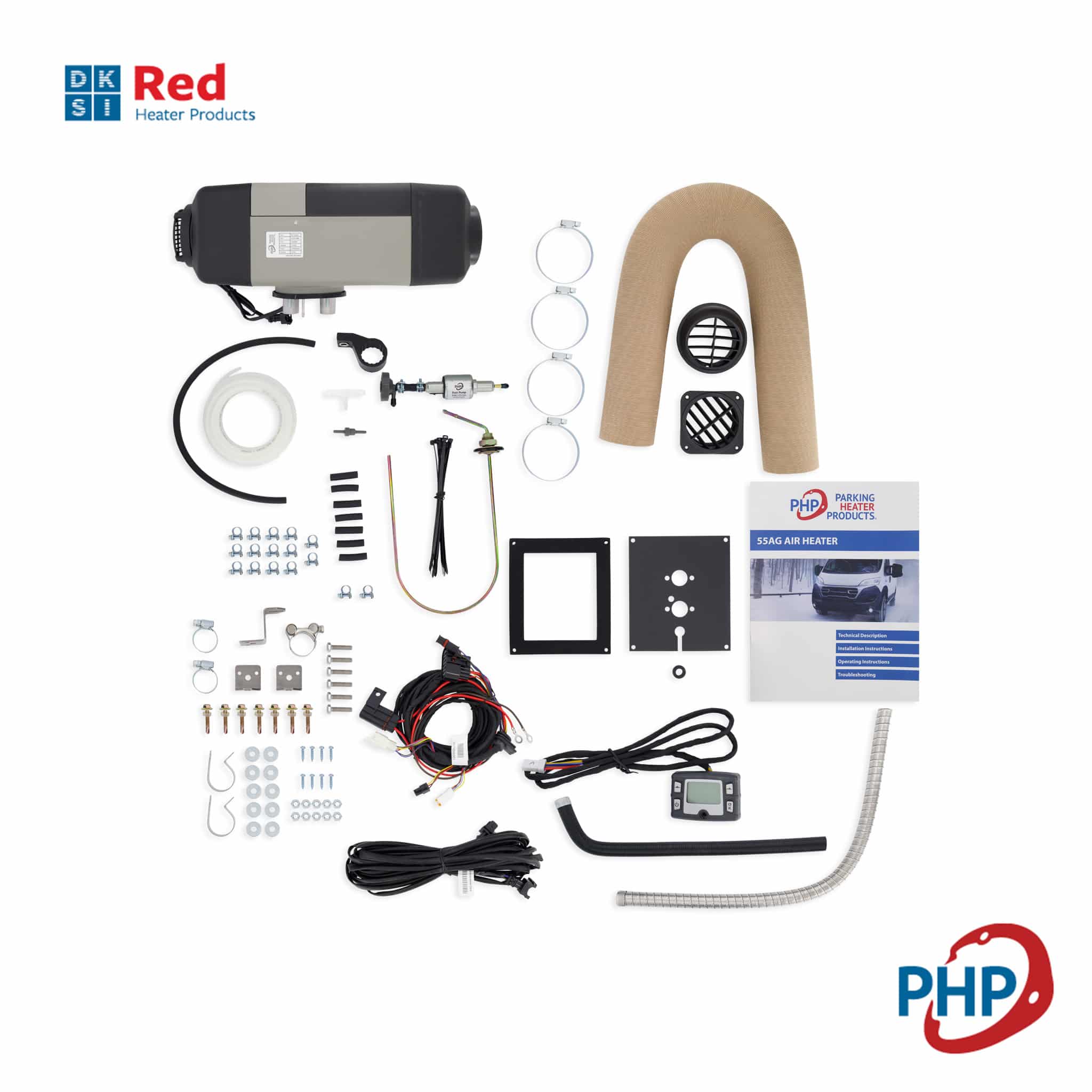

- Air Heater Vehicle Kit (includes all items in photo)
- 5kW
- 12V GAS
- Comes with Operator Switch
- Optional Accessories (purchased separately): Fuel Pickup Pipe
P55AG Air Heater Performance Specifications:
| Heating Mode (Variable) | Highest Range | Lowest Range |
| Heating Capacity KW (BTU) | 5.0 (17,060) | 1.4 (4,777) |
| Fuel Consumption l/h (US Gallon) | 0.66 (0.17) | 0.19 (0.05) |
| Air Flow M^3/min (CFM) | 1.19 (42) | 0.47 (16) |
| Power Consumption – WATT | 90 | 15 |
| Start-up Power – WATT | ≤ 100 |
| Fuel Type | Gasoline |
| Nominal Voltage | 12 Volts |
| Lower Voltage Limit | 10 Volt over 20 seconds |
| Upper Voltage Limit | 15.0 Volts over 20 seconds |
| Overheat Protection | 115º C (239º F) |
| Allowed Ambient Temperature | -40º C to 50º C (-40º F to 122º F) |
| Operating Altitude | 0 to 5,000 m (16,404’) |
| Weight | 5.9 kg (13 lb.) |
| Overall Dimensions |
Length 425 mm (16.7”) Width 148 mm (5.8”) Height 162 mm (6.4”) |
| Above Specifications (± 10%) |
Resources
- Manual
- Operating Switch Instructions: P65D-X389

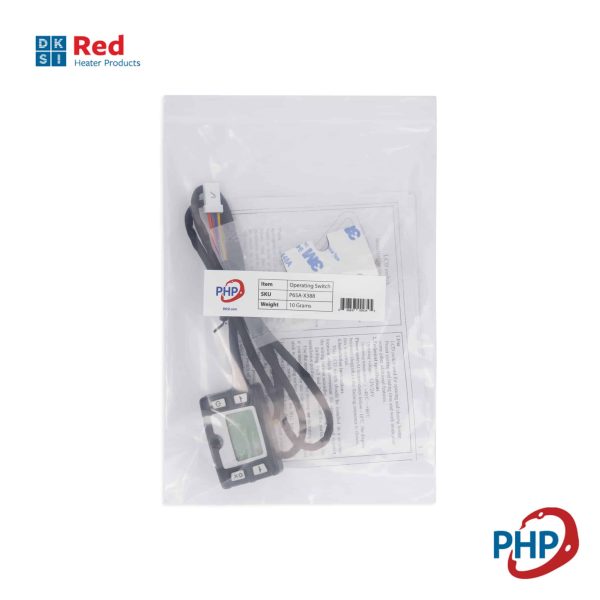

- Operating Switch Instructions: P65A-X388

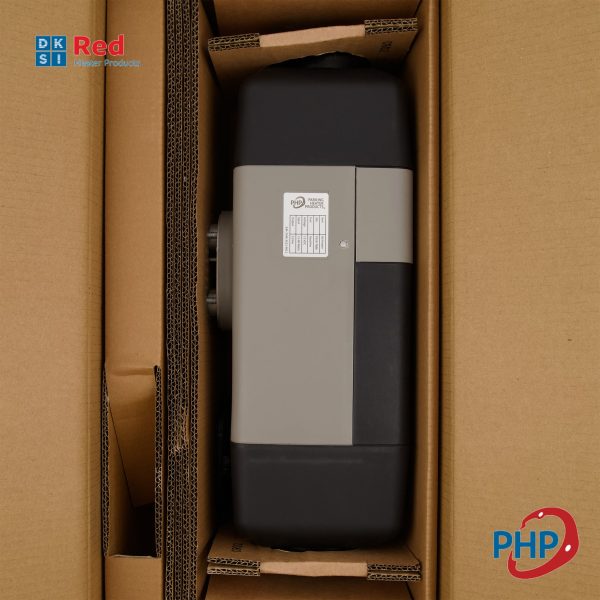

- Unboxing – Video
- P65A-X388 Operating Switch – Video
- P65D-X389 Operating Switch – Video
