Description
- Espar D4 Airtronic KIT
- 4KW
- 12V

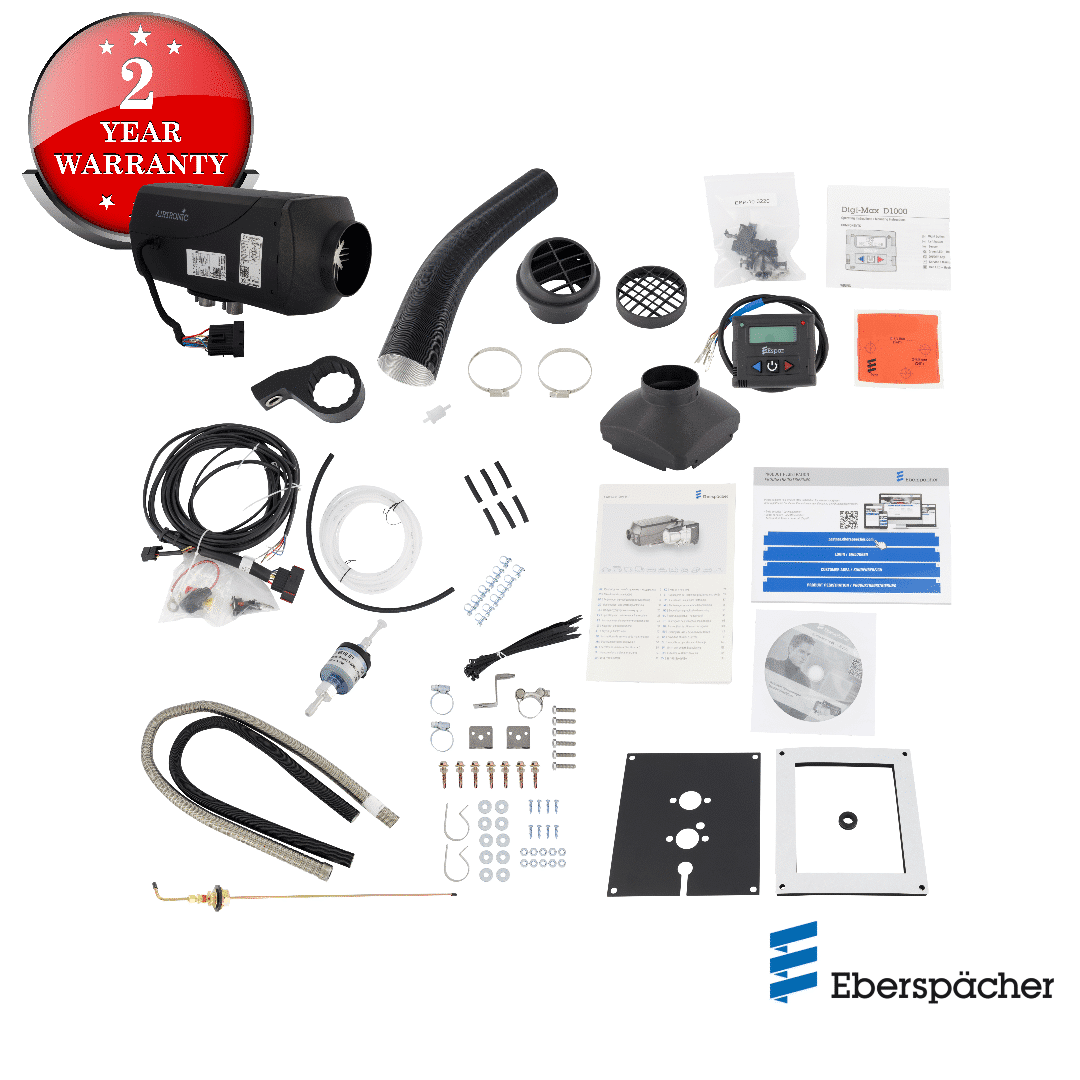

Kit Includes:

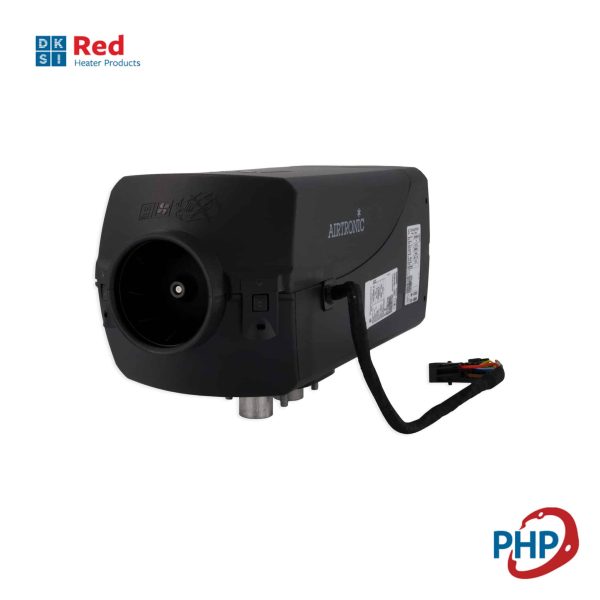

- 4kW Air Heater
- Operating Switch & Mounting Bracket
- Heater Mounting Plate & Seal
- Wiring Harness
- Flexible Stainless Steel Exhaust
- Combustion Air Intake Tube & Cap
- Hot Air Ducting Hose
- Air Outlet Adjustable Vent
- Ducting Hose Clamps
- Return Air Inlet
- Fuel Pump
- Fuel Pickup Tube & Fuel Tube Hardware Kit
- Fuel Filter
- All required hardware (nuts, screws, washers) for installation are provided in kit
Air Heater Performance Specifications:
Heating Mode: Super | High | Medium | Low
Heating Capacity: Super 4.6 kW/hr (15,695 BTUs/hr) | High 3.5 kW/hr (11,942 BTUs/hr) | Medium 2.5 kW/hr (8,530 BTUs/hr) | Low 1.4 kW/hr (4,777 BTUs/hr)
Fuel Consumption: Super 0.53 L/hr (0.14 US Gal/hr) | High 0.41 L/hr (0.11 US Gal/hr) | Medium 0.29 L/hr (0.08 US Gal/hr) | Low 0.18 L/hr (0.05 US Gal/hr)
Air Flow M^3/min (CFM): Super 2.46 (87) | High 2.01 (71) | Medium 1.47 (52) | Low 0.99 (35)
Power Consumption watts: Super 40 | High 33 | Medium 25 | Low 12
Power Consumption at Start Watts: ≤ 100
Fuel Type: Diesel
Nominal Voltage: 12 Volt
Lower Voltage Limit: 9 Volts over 20 seconds
Upper Voltage Limit: 16.0 Volts over 20 seconds
Overheat Protection: 115° C (239° F)
Allowed Ambient Temperature: -40° C to 76° C (-40° F to 168° F)
Weight: 4.45 kg (10 lbs)
Above Specifications (± 10%)
