Description
PHP 2.0 kw, P21A Drop-In Bunk Heater
• Direct replacement for the Espar Airtronic D2 bunk heater
• Plugs directly into existing wiring harness
• Uses existing fuel system, ducting, exhaust and combustion air and hardware

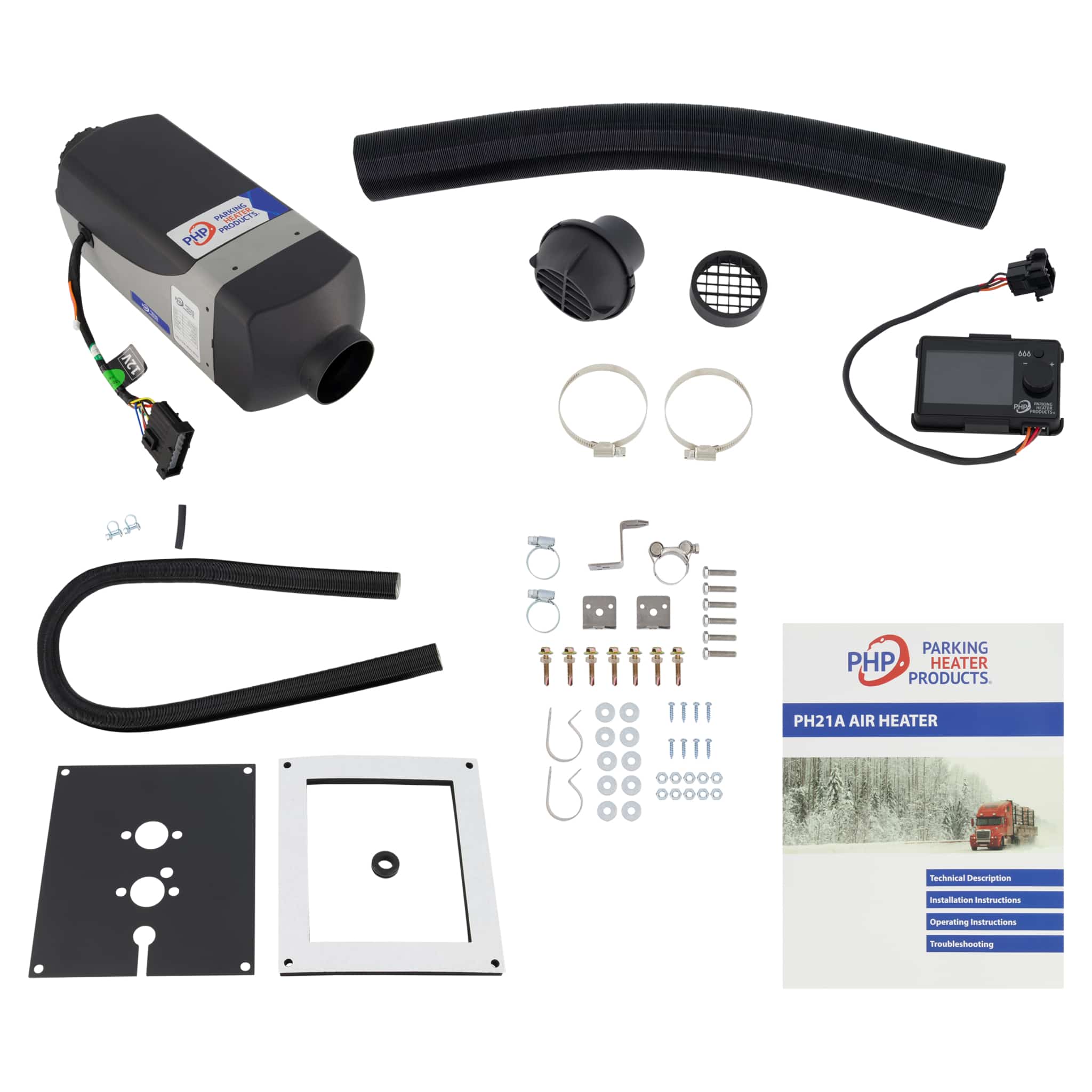

Kit Includes:
• Parking Heater Products 2.0 kw Diesel Fired, 12 volt Air Heater
• Operating Switch with digital display, precise temperature control and self-diagnostics.
• Mounting plate
• Combustion air tube
• Mounting hardware
• North American operating manual
The P21A-T806 kit is designed to drop in to a new Kenworth truck that arrived at dealership and was missing the heater. The truck is wired, and all accessories mounted but, no heater. This would plug into existing wiring harness.
Air Heater Performance Specifications:
Heating Mode: Super | High | Medium | Low
Heating Capacity: Super 2.0 kW/hr (6,850 BTUs/hr) | High 1.5 kW/hr (5,800 BTUs/hr) | Medium 1.1 kW/hr (4,437 BTUs/hr) | Low 0.9 kW/hr (3,072 BTUs/hr)
Fuel Consumption: Super 0.21 L/hr (0.07 US Gal/hr) | High 0.16 L/hr (0.06 US Gal/hr) | Medium 0.12 L/hr (0.04 US Gal/hr) | Low 0.10 L/hr (0.02 US Gal/hr)
Air Flow M^3/min (CFM): Super 1.65 (58) | High 1.19 (42) | Medium 0.72 (26) | Low 0.47 (16)
Power Consumption watts: Super 34 | High 23 | Medium 13 | Low  9
Power Consumption at Start Watts: ≤ 100
Fuel Type:Â Diesel
Nominal Voltage:Â 12 Volt
Lower Voltage Limit:Â 9Â Volts over 20 secondsÂ
Upper Voltage Limit:Â 16.0 Volts over 20 secondsÂ
Overheat Protection: 115° C (239° F)
Allowed Ambient Temperature: -40° C to 76° C (-40° F to 168° F)
Weight:Â 2.6 kg (5.7 lbs)
Above Specifications (± 10%)
