Description
The PH49A heater is a multi-functional heater that provides both cabin heat and domestic water heat. This makes it ideally suited for RV or commercial service truck applications. Heat is produced using either the integrated 12v diesel furnace, 110 VAC shore power or combination of both. While utilizing shore power, the heater can adapt to either 900W or 1800W depending upon the service available.

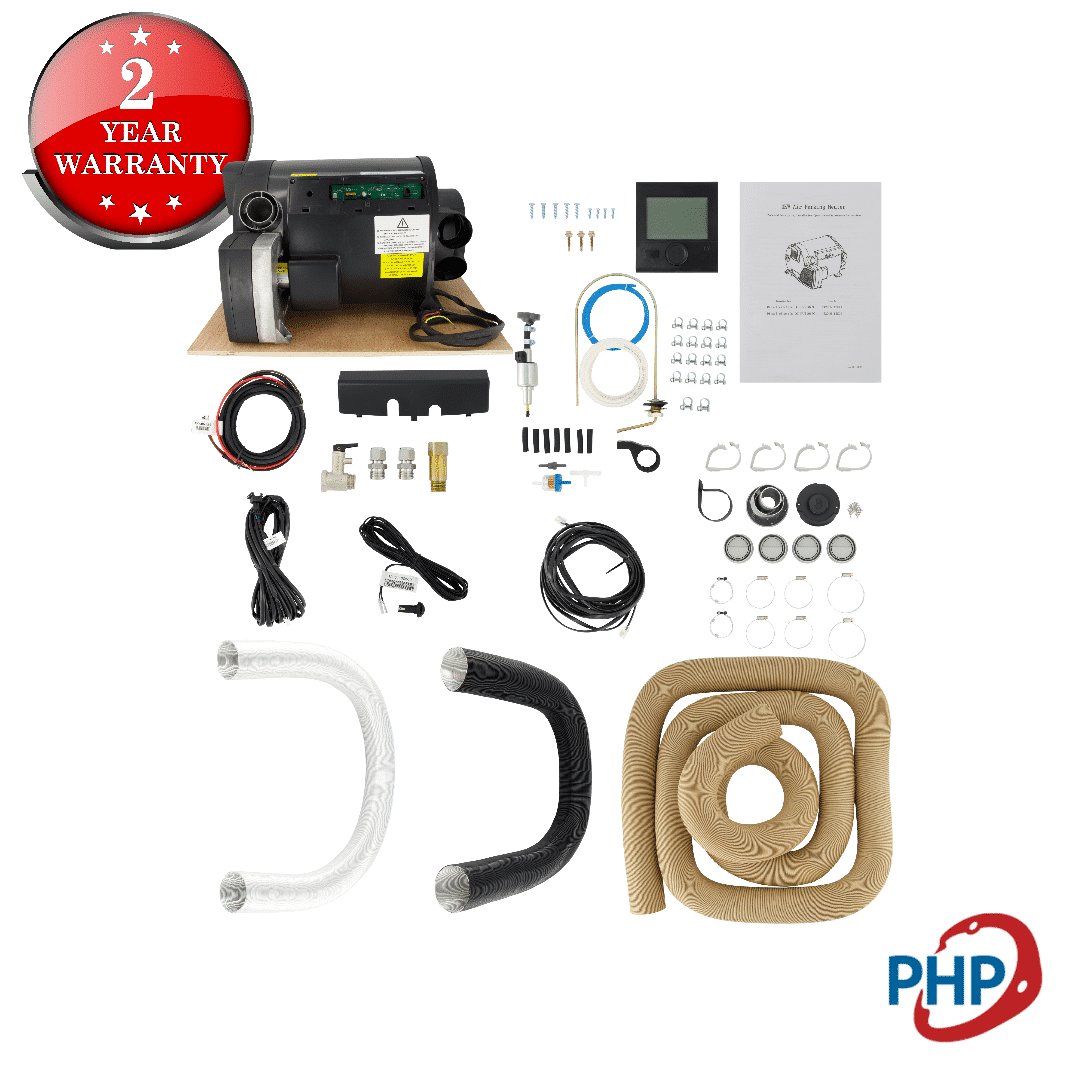

PH49A – Combo Heater
- Cabin and Water Heating
- Diesel or Electric
P49A Combi Heater Technical Specifications:
| System Parameters | |
| Overall Dimensions | Length 510 mm (20.1”)
Width 450 mm (17.7”) Height 300 mm (11.8”) |
| Weight (Without water) | 15.6 kg (34 lbs) |
| Working Altitude | <5000m (16,404’) |
| Allowed Ambient Temperature | -25º C to 80º C (-13º F to 176º F) |
| Water System | |
| Water Tank Capacity L | 10 L 2.6 US Gallon |
| Maximum Pressure of Water Pump | 2.8 bar 41 PSI |
| Maximum Pressure of System | 4.5 bar 65 PSI |
| Heating Temperature Range
|
40 °C (104 °F) or 60 °C (140 °F) |
| Diesel Heating Operation | |
| Heating Capacity | 4.0 KW 13,650 BTU |
| Fuel Consumption | Low 0.1 l/h (0.03 US Gallon)
High 0.5 l/h (0.13 US Gallon) |
| Air Flow | 4.78 M^3/min 169 CFM |
| Rated Voltage | 12 VDC |
| Power Consumption – WATT | 9 Low 42 High |
| Start-up Power – WATT | ≤ 120 |
| Lower Voltage Limit | 10.5 Volt over 20 seconds |
| Upper Voltage Limit | 16.0 Volts over 20 seconds |
| Electric Heating Operation | |
| Rated Supply Voltage | 110V, 50Hz |
| Rated Heating Power | High – 1800W
Low – 900 W |
| Electrical Power Dissipation | 15.6A (1,716W)
7.8A (858W) |
Note: All Specifications (± 10%)
