Description

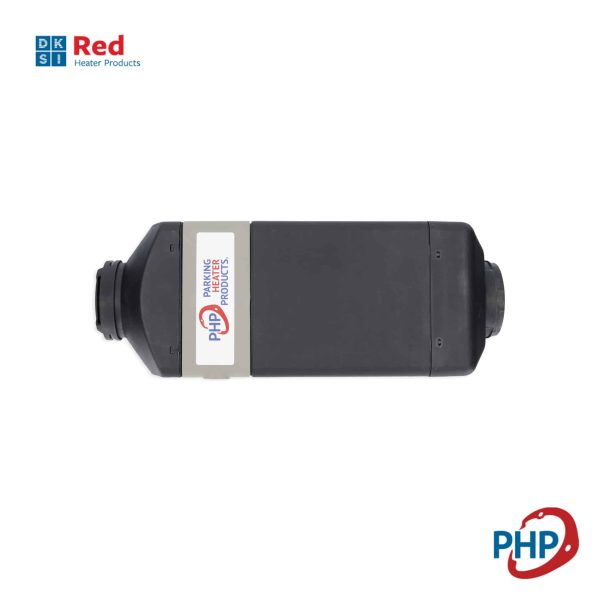

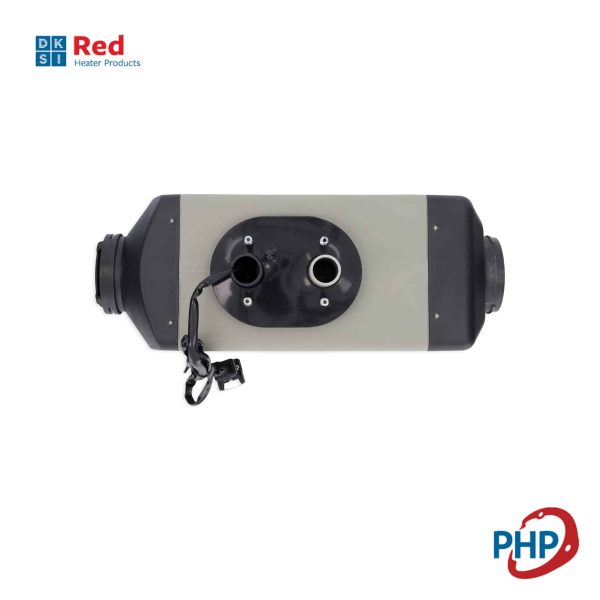

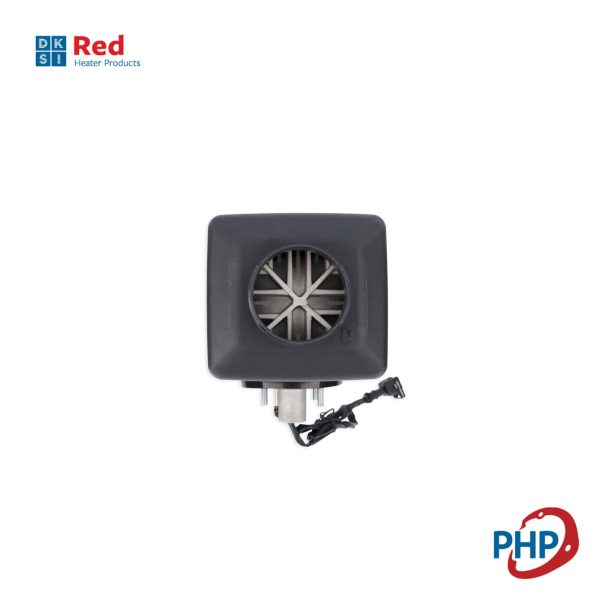

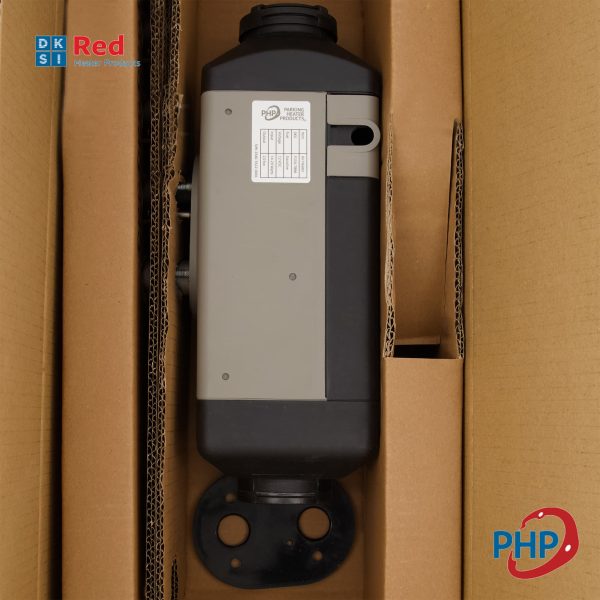

The PH25AG-A heater is designed to provide cabin heating for Boats, RV’s, on-highway and off-highway equipment by using on-board gasoline fuel and battery systems. Operation is simple and the heater provides a safe and reliable alternative to engine idling or need for electrical plugins. This heater is designed to operate continuously at altitudes 5,000 m (16,404’) above sea level.

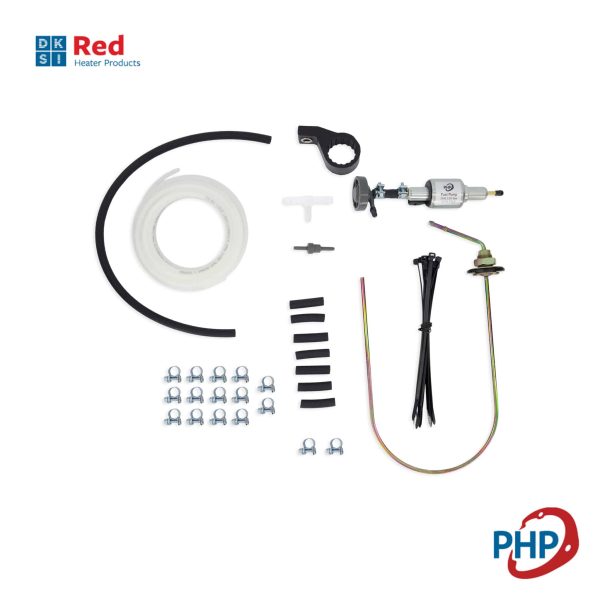

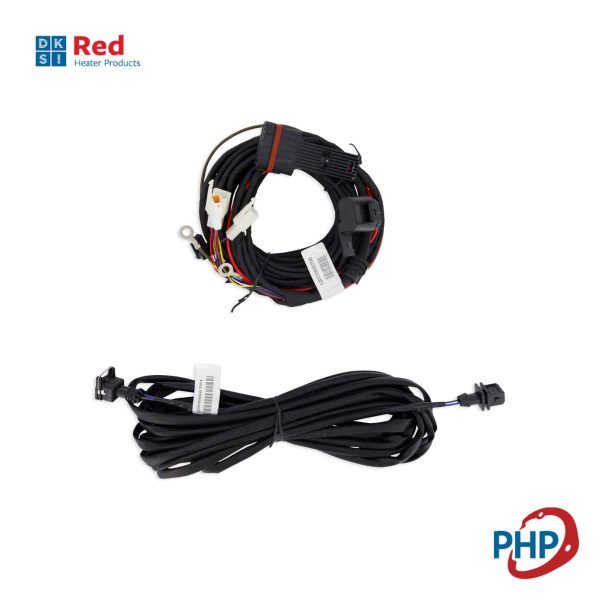

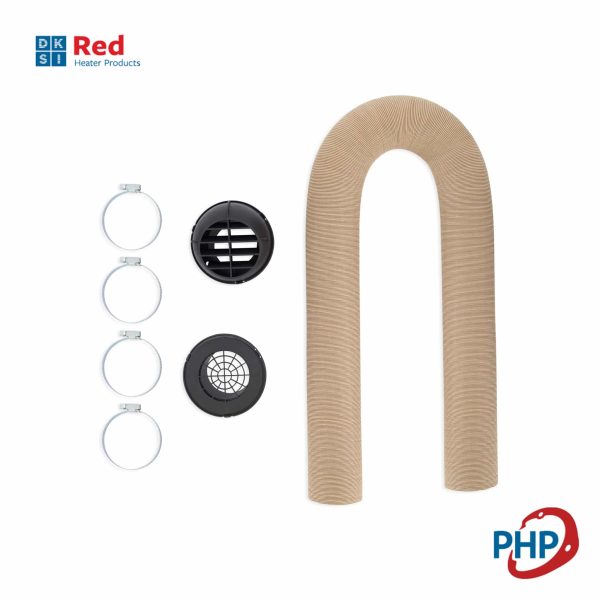

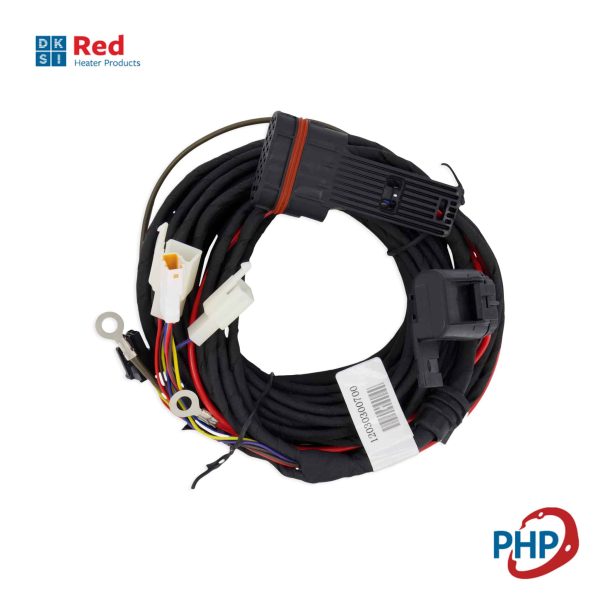

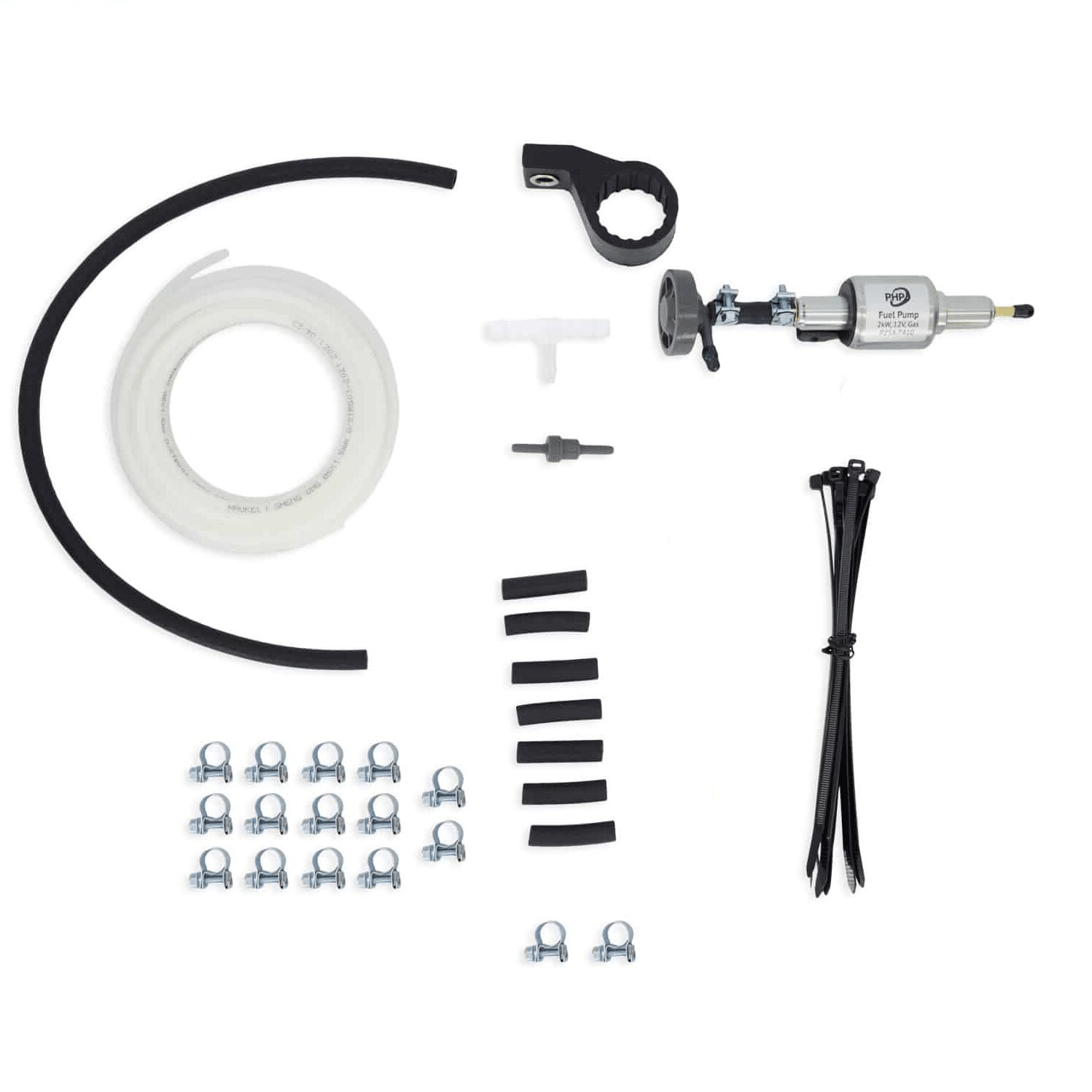

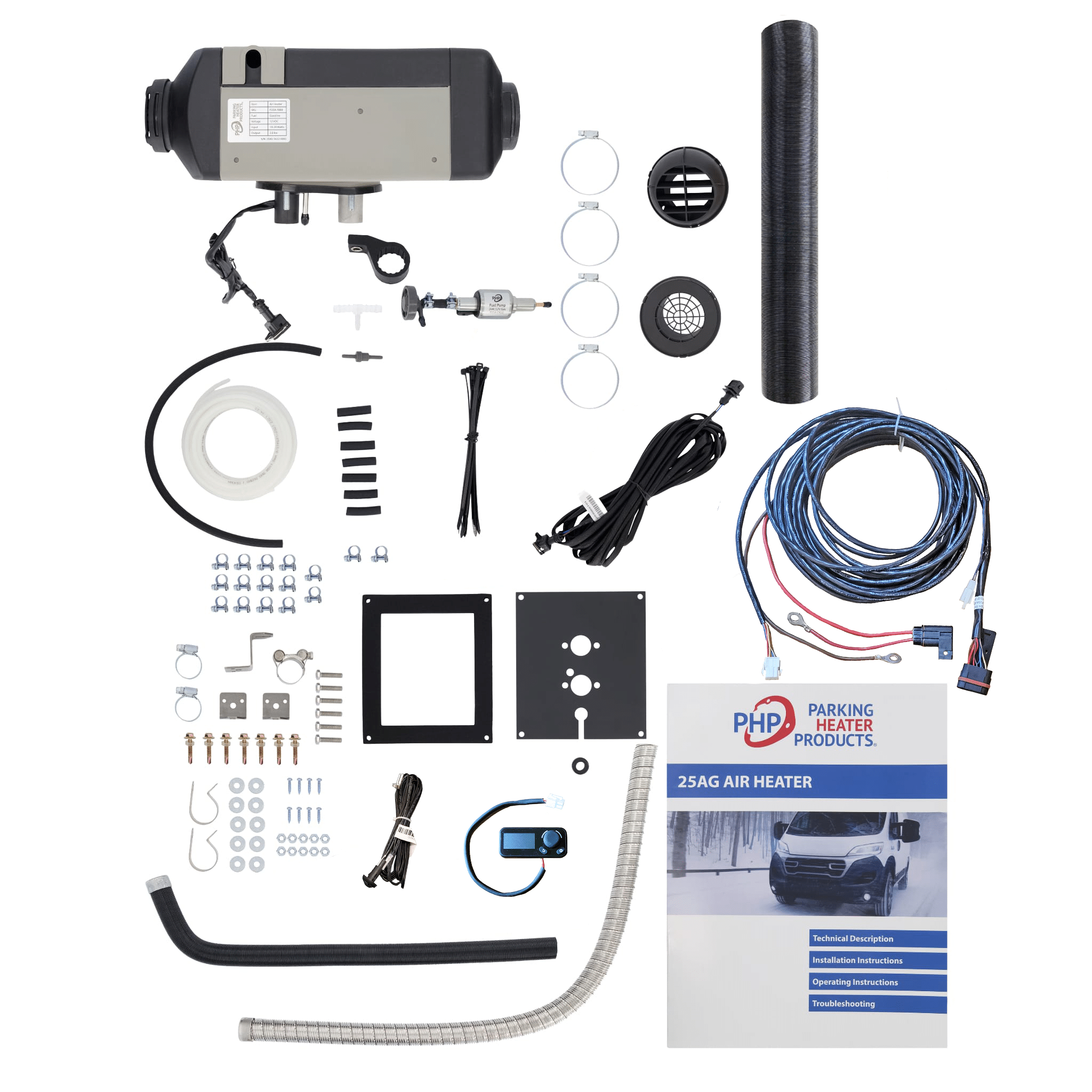

- Air Heater Vehicle Kit
- 2kW
- 12V GAS
- Comes with Operator Switch

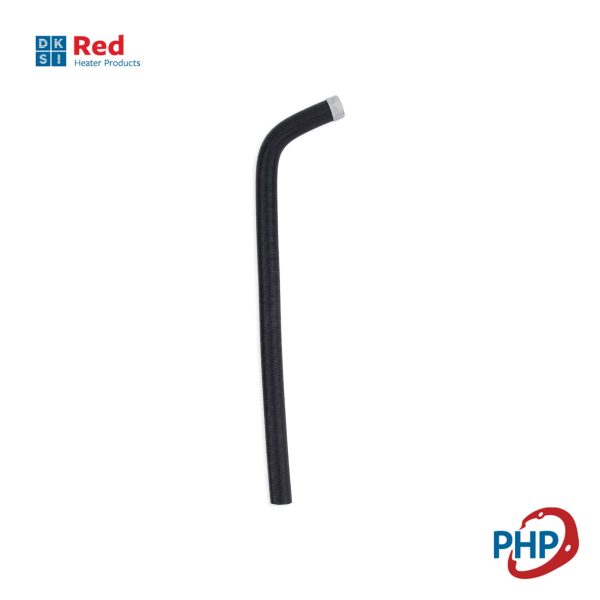

- Optional Accessories (purchased separately): Fuel Pickup Pipe
P25AG Air Heater Performance Specifications:
| Heating Mode (Variable) | High Range | Low Range |
| Heating Capacity KW (BTU) | 2.0 (6,824) | 1.0 (3,412) |
| Fuel Consumption l/h (US Gallon) | 0.27 (0.07) | 0.14 (0.04) |
| Air Flow M^3/min (CFM) | 1.19 (42) | 0.47 (16) |
| Power Consumption – WATT | 29 | 14 |
| Start-up Power – WATT | ≤ 100 |
| Fuel Type | Gasoline |
| Nominal Voltage | 12 Volts |
| Lower Voltage Limit | 10 Volt over 20 seconds |
| Upper Voltage Limit | 15.0 Volts over 20 seconds |
| Overheat Protection | 115º C (239º F) |
| Allowed Ambient Temperature | -40º C to 50º C (-40º F to 122º F) |
| Operating Altitude | 0 to 5,000 m (16,404’) |
| Weight | 2.6 kg (5.7 lb.) |
| Overall Dimensions | Length 323 mm (12.7”)
Width 120 mm (4.7”) Height 121 mm (4.7”) |
| Above Specifications (± 10%) |
