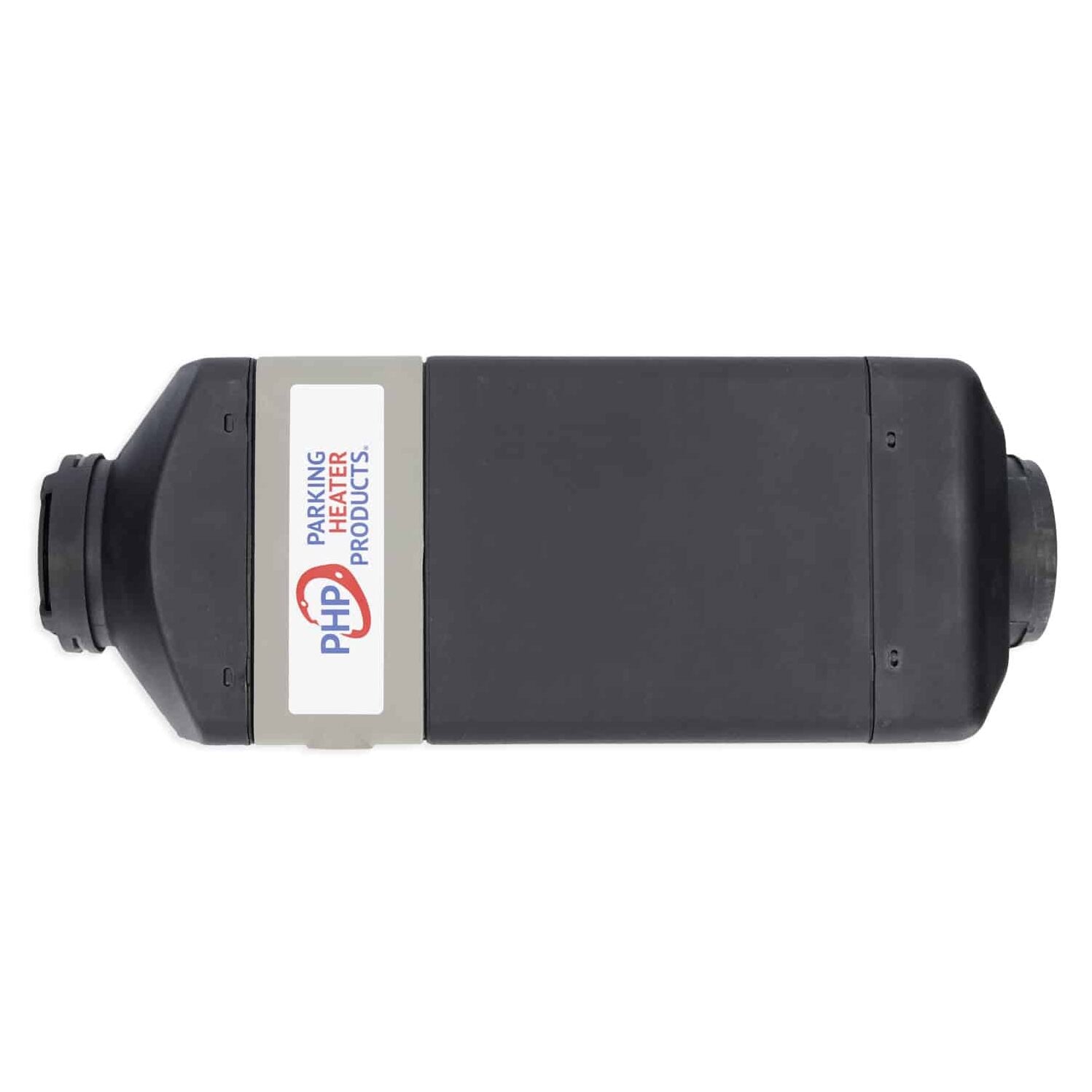

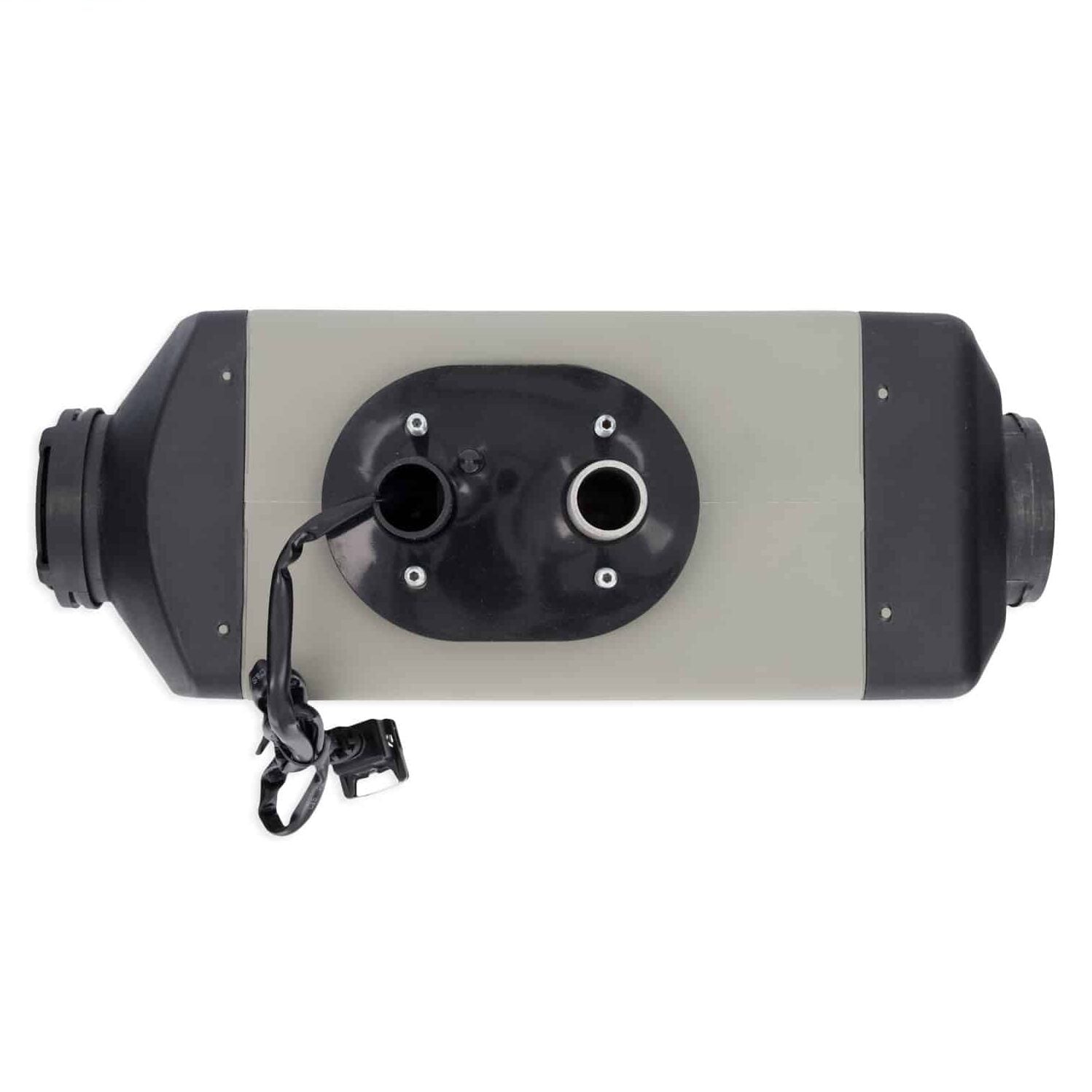

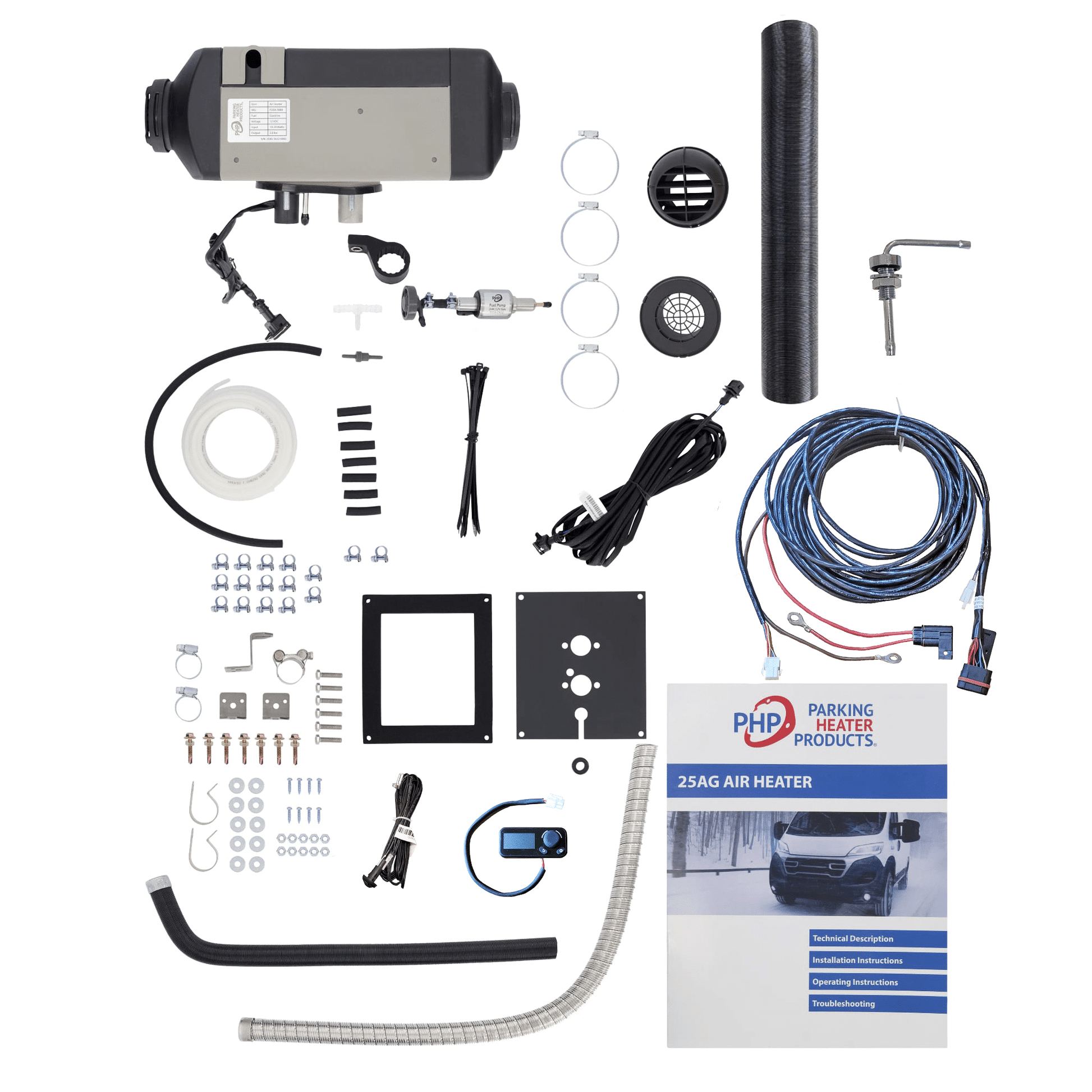

PHP PH25AG Air Heater Vehicle Kit - 2kW 12V Gasoline

Name: PHP PH25AG Air Heater Vehicle Kit - 2kW 12V Gasoline
Brand: DKSI
SKU: PH25AG-A
Price: 1057.62 CAD
Availability: InStock

PH25AG-A

$1,057.62 CAD

In stock

The PH25AG-A heater is designed to provide cabin heating for Boats, RV's, on-highway and off-highway equipment by using on-board gasoline fuel and battery systems. Operation is simple and the heater provides a safe and reliable alternative to engine idling or need for electrical plugins. This heater is designed to operate continuously at altitudes 5,000 m (16,404’) above sea level.

Fully secure checkout
Trusted by thousands
Rated and reviewed

Question about this product?

We're happy to help.

product details

P25AG Air Heater Performance Specifications:

Heating Mode (Variable)	High Range	Low Range
Heating Capacity KW (BTU)	2.0 (6,824)	1.0 (3,412)
Fuel Consumption l/h (US Gallon)	0.27 (0.07)	0.14 (0.04)
Air Flow M^3/min (CFM)	1.19 (42)	0.47 (16)
Power Consumption - WATT	29	14
Start-up Power - WATT	≤ 100

Resources

Specifications

Fuel Type	Gasoline
Nominal Voltage	12 Volts
Lower Voltage Limit	10 Volt over 20 seconds
Upper Voltage Limit	15.0 Volts over 20 seconds
Overheat Protection	115º C (239º F)
Allowed Ambient Temperature	-40º C to 50º C (-40º F to 122º F)
Weight	2.6 kg (5.7 lb.)

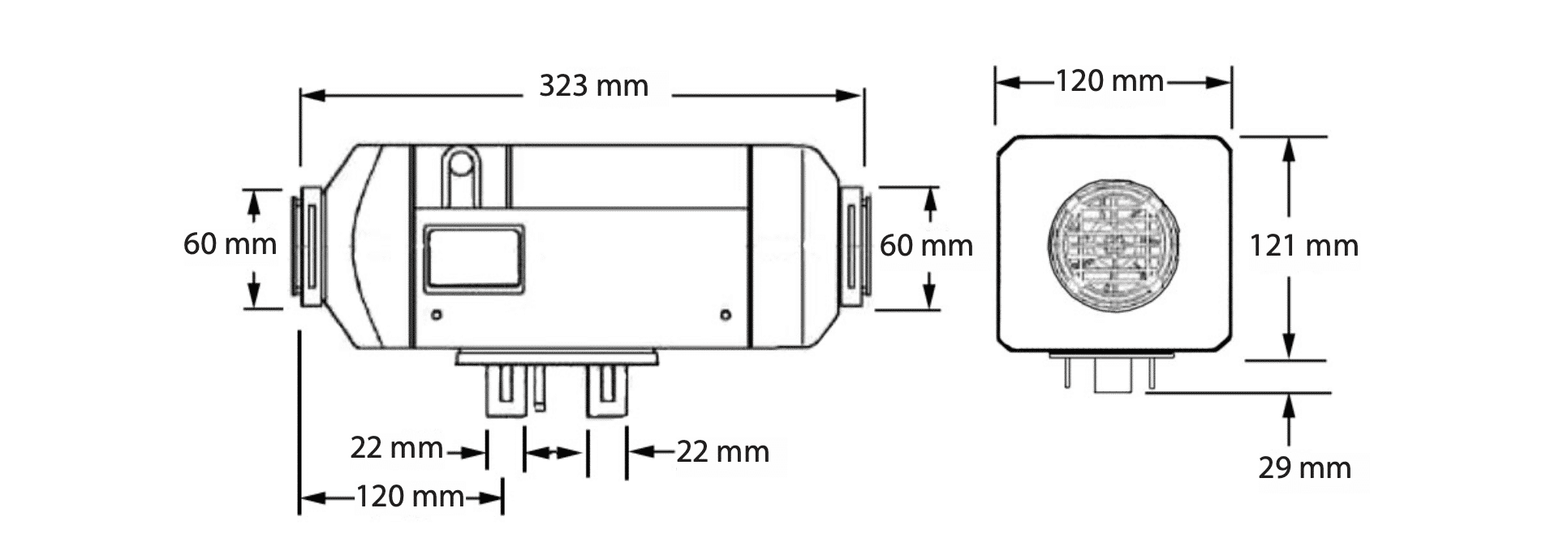

Overall Dimensions	Length 323 mm (12.7”) Width 120 mm (4.7”) Height 121 mm (4.7”)
Above Specifications	(± 10%)
