PHP PH41A Air Heater Vehicle Kit - 4kW 12V Diesel

Name: PHP PH41A Air Heater Vehicle Kit - 4kW 12V Diesel
Brand: DKSI
SKU: PH41A-A
Price: 1452.48 CAD
Availability: InStock

PH41A-A

$1,452.48 CAD

In stock

The PH41A heater is designed to provide cabin heating for trucks, off-highway equipment, RVs and boats by using on-board diesel fuel and battery systems. Operation is simple and the heater provides a safe and reliable alternative to engine idling or need for electrical plug ins.

Fully secure checkout
Trusted by thousands
Rated and reviewed

Question about this product?

We're happy to help.

product details

P41A Air Heater Performance Specifications:

Heating Mode	Super	High	Medium	Low
Heating Capacity KW (BTU)	4.6 (15,695)	3.5 (11,942)	2.5 (8,530)	1.4 (4,777)
Fuel Consumption l/h (US Gallon)	0.53 (0.14)	0.41 (0.11)	0.29 (0.08)	0.18 (0.05)
Air Flow M^3/min (CFM)	2.46 (87)	2.01 (71)	1.47 (52)	0.99 (35)
Power Consumption - WATT	40	33	25	12
Start-up Power - WATT	≤ 100

Resources

Specifications

Fuel Type	Diesel
Nominal Voltage	12 Volts
Lower Voltage Limit	9 Volt over 20 seconds
Upper Voltage Limit	16.0 Volts over 20 seconds
Overheat Protection	115º C (239º F)
Allowed Ambient Temperature	-40º C to 76º C (-40º F to 168º F)
Weight	4.45 kg (10 lbs)
Overall Dimensions	Length 373 mm (14.65”) Width 141 mm (5.55”) Height 150 mm (5.91”)
Above Specifications	(± 10%)

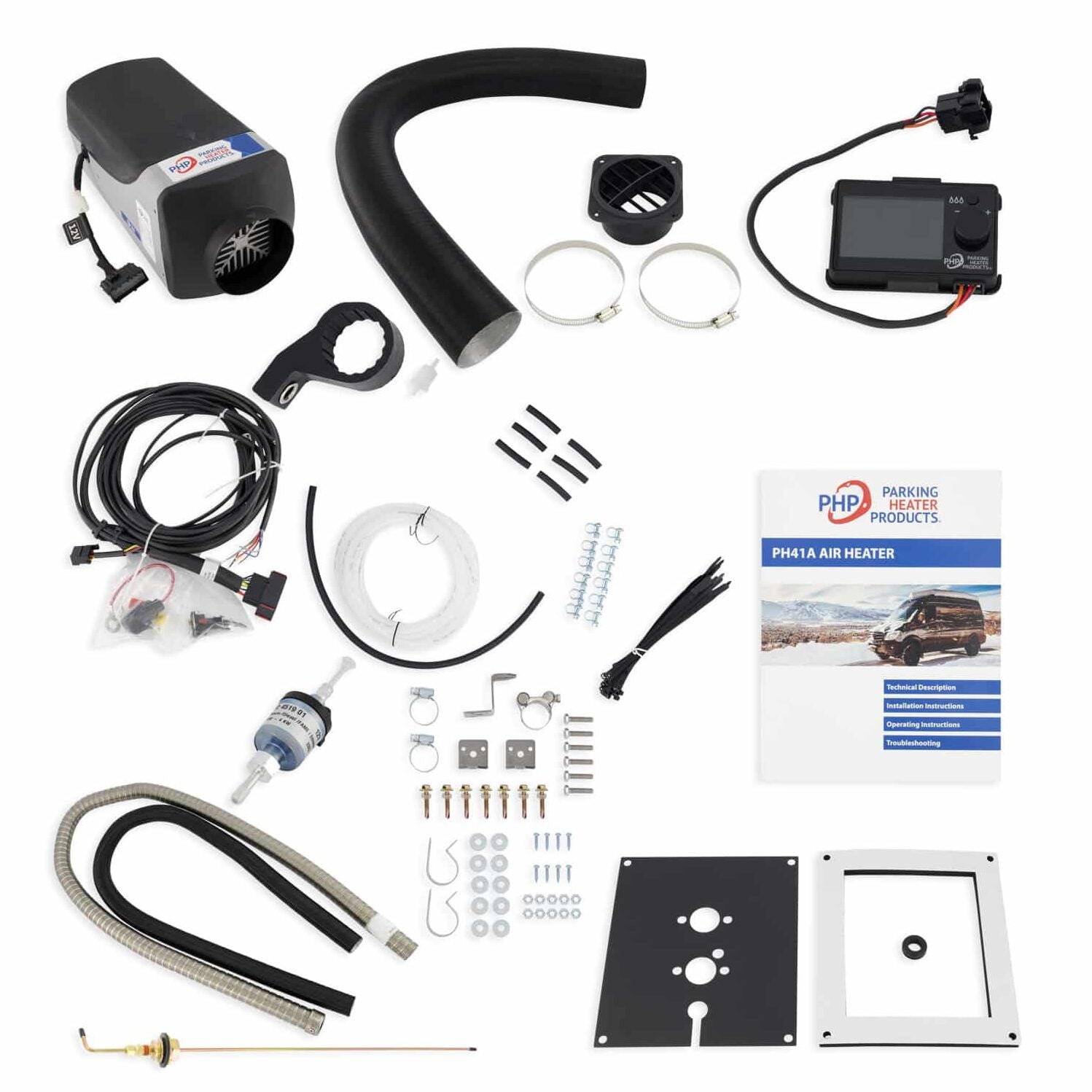

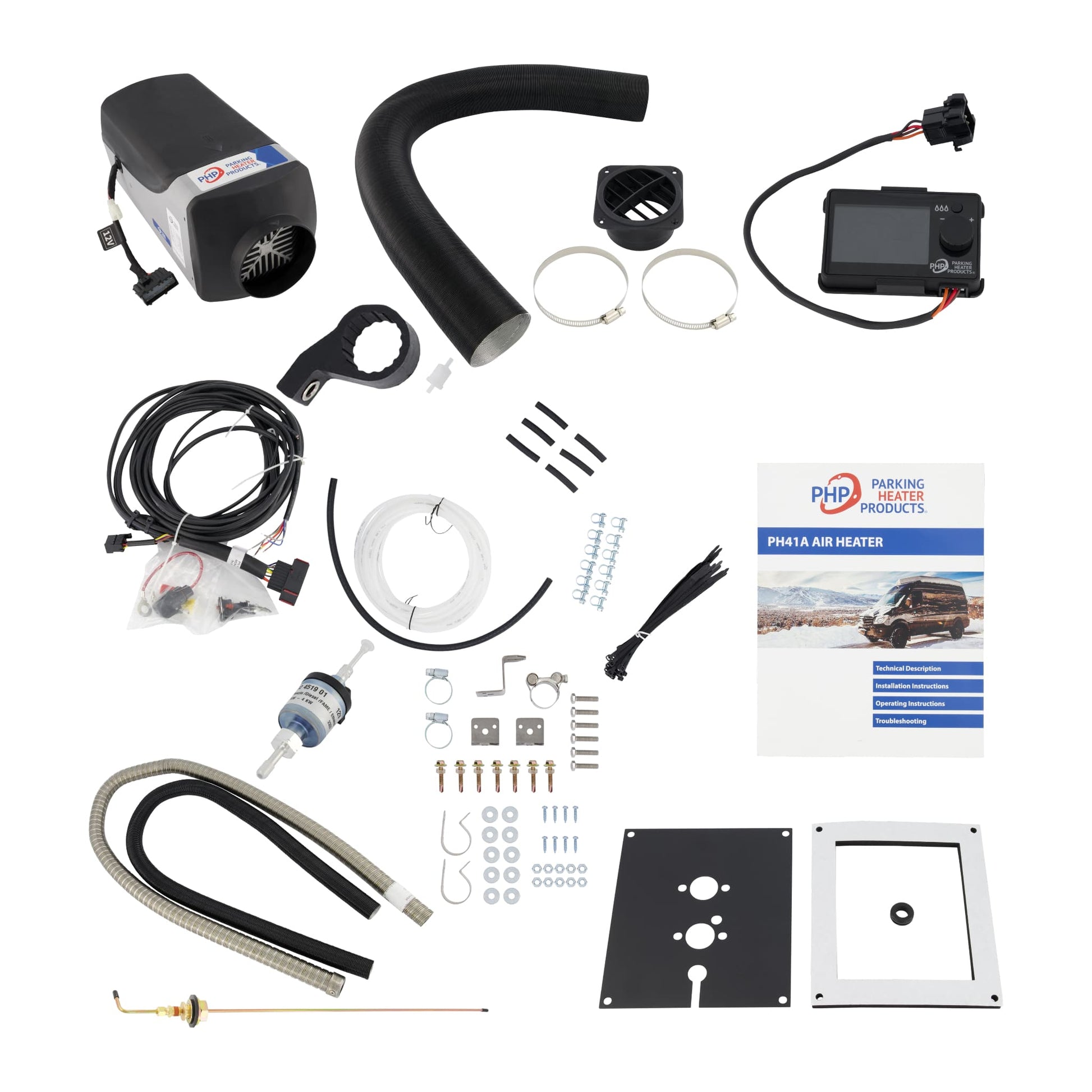

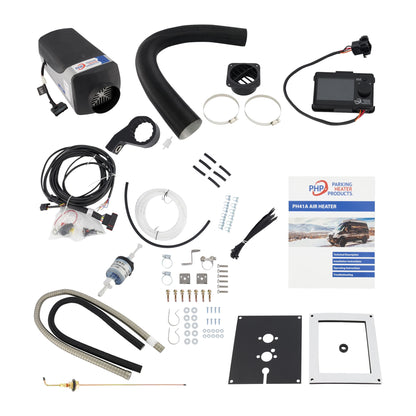

Kit Includes

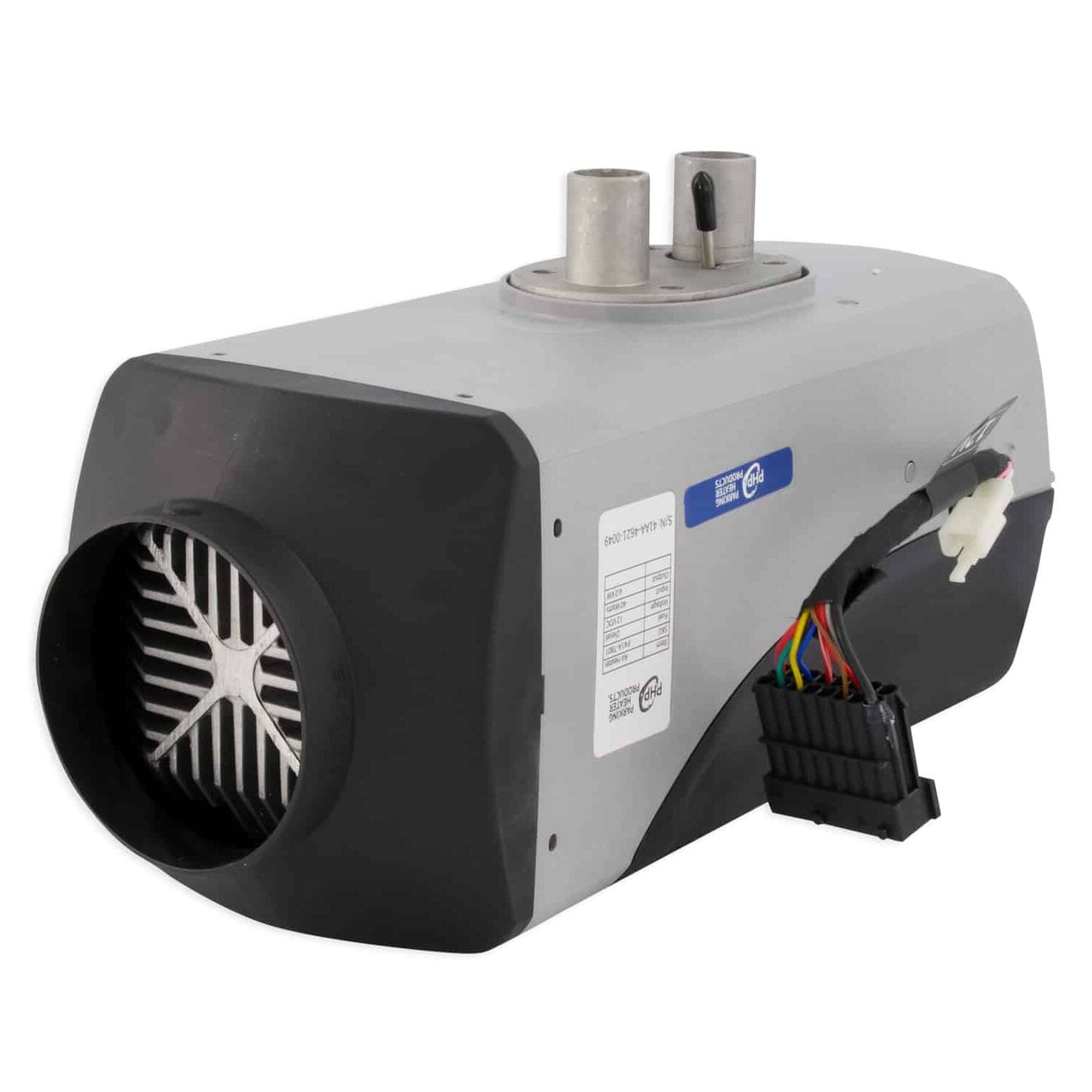

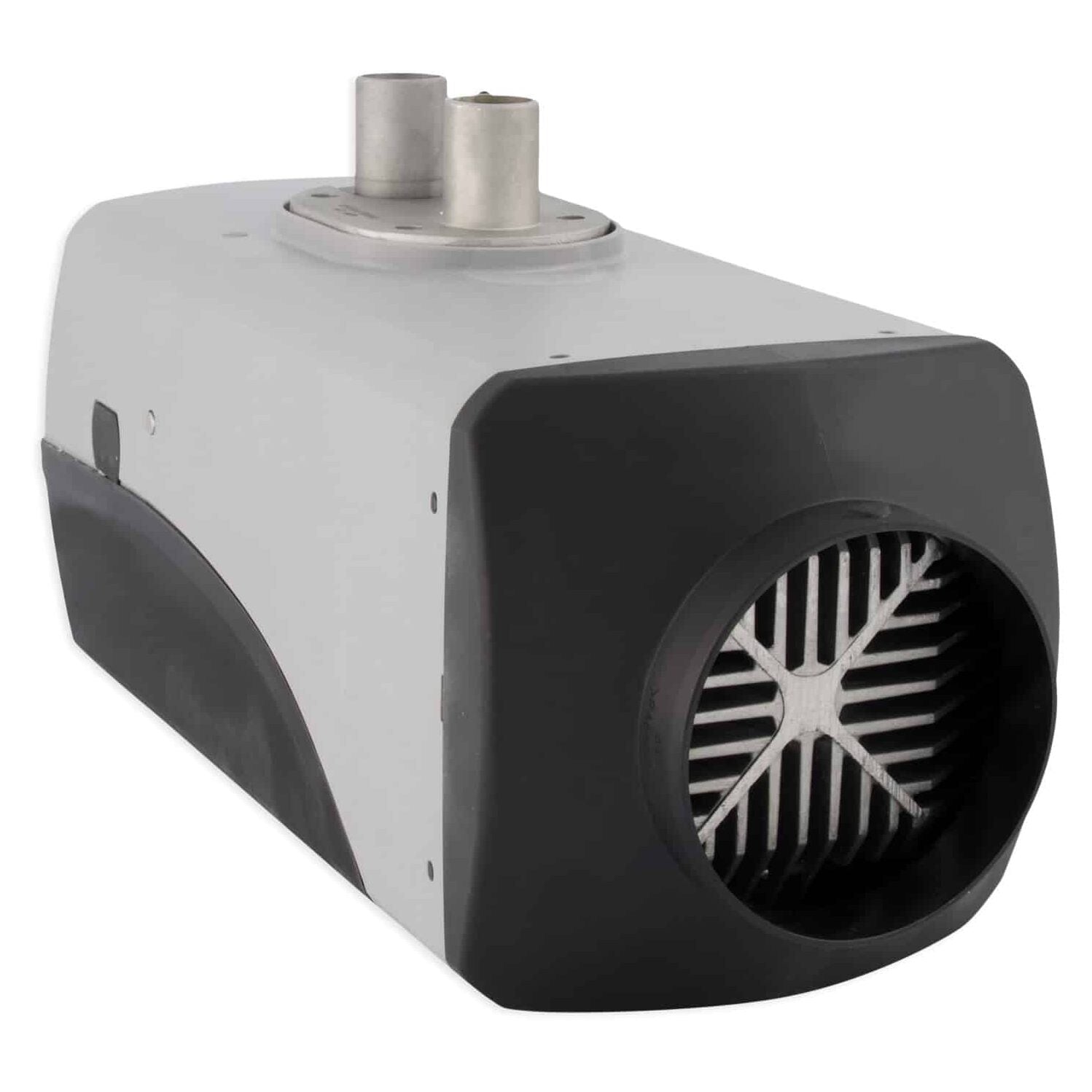

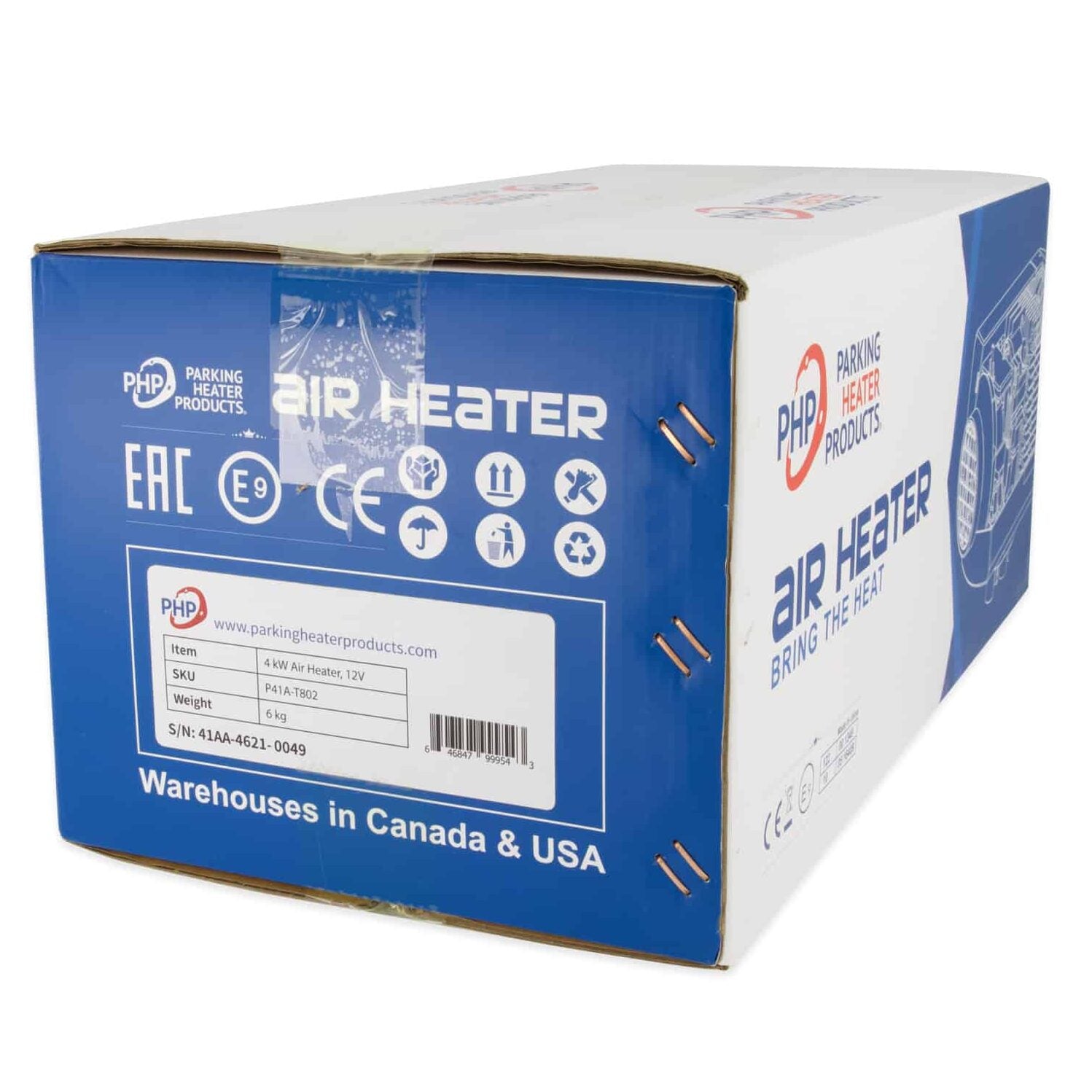

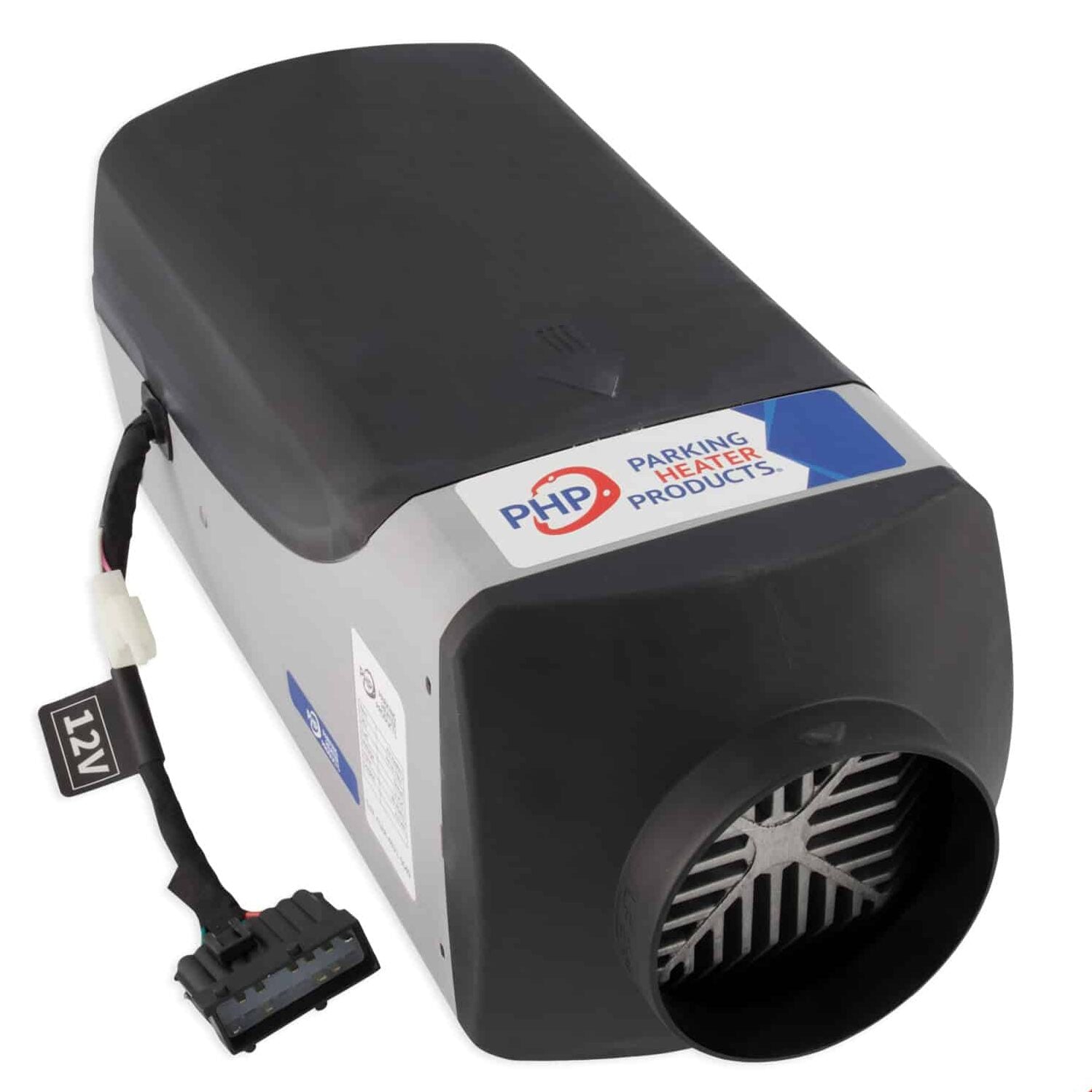

4kW Air Heater

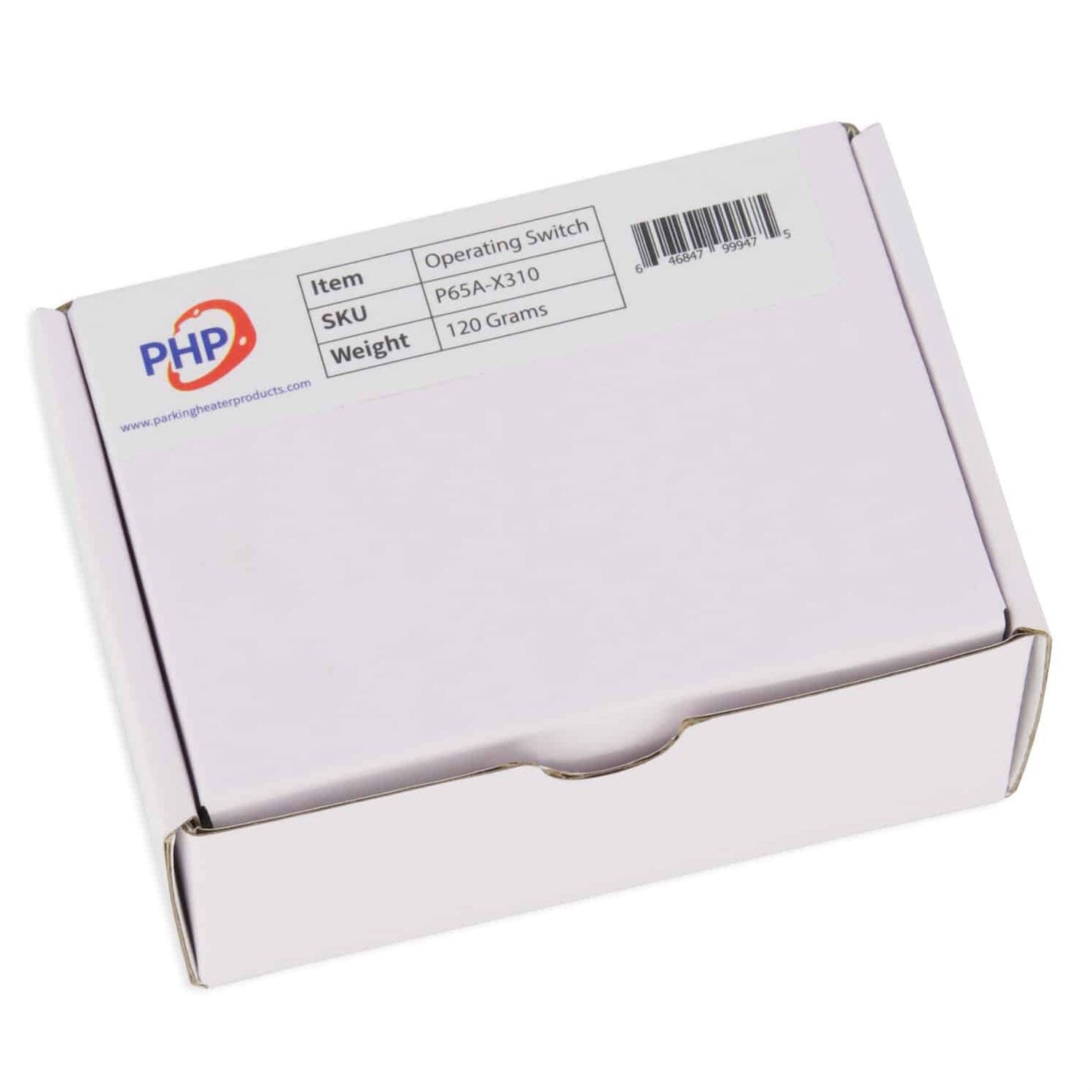

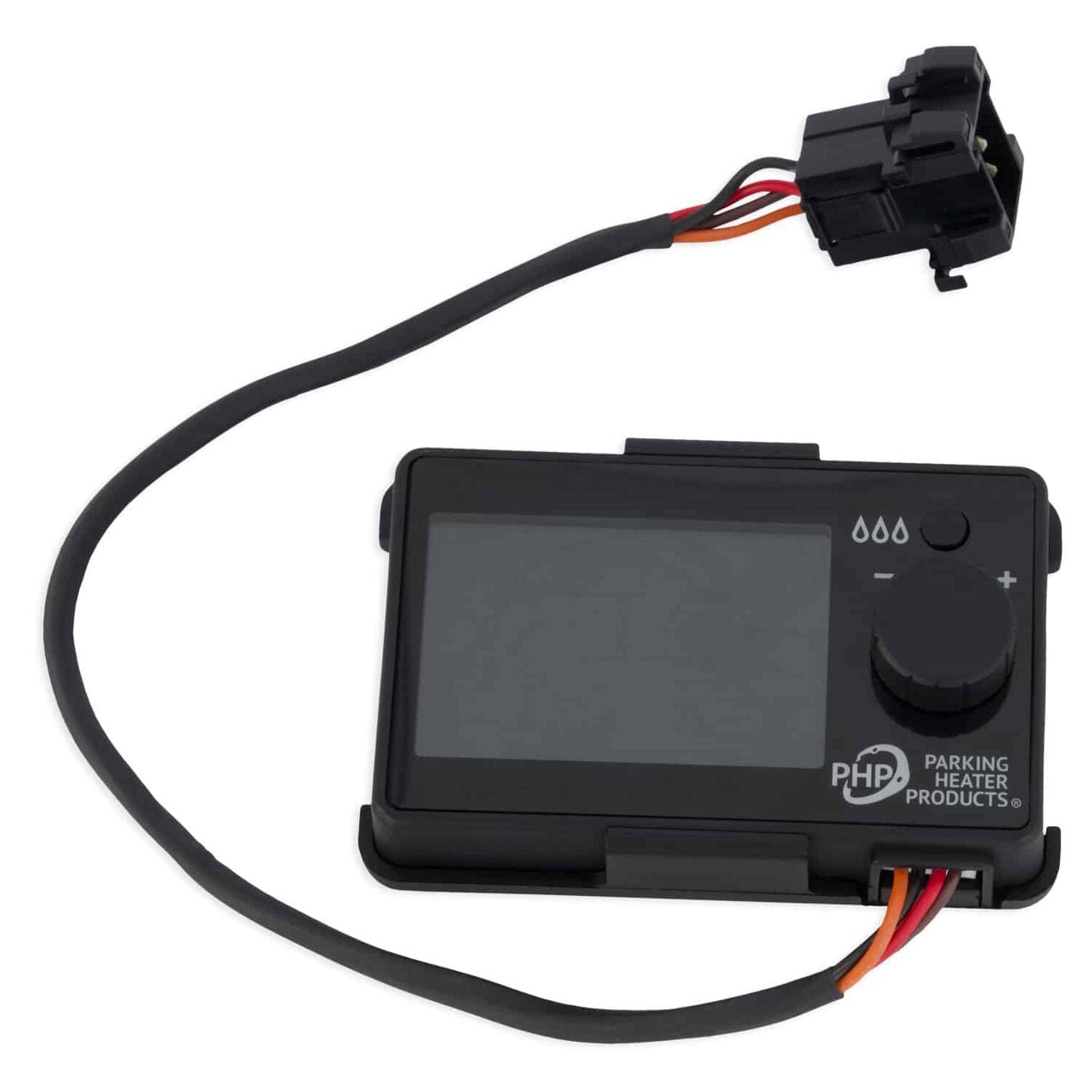

Operating Switch & Mounting Bracket

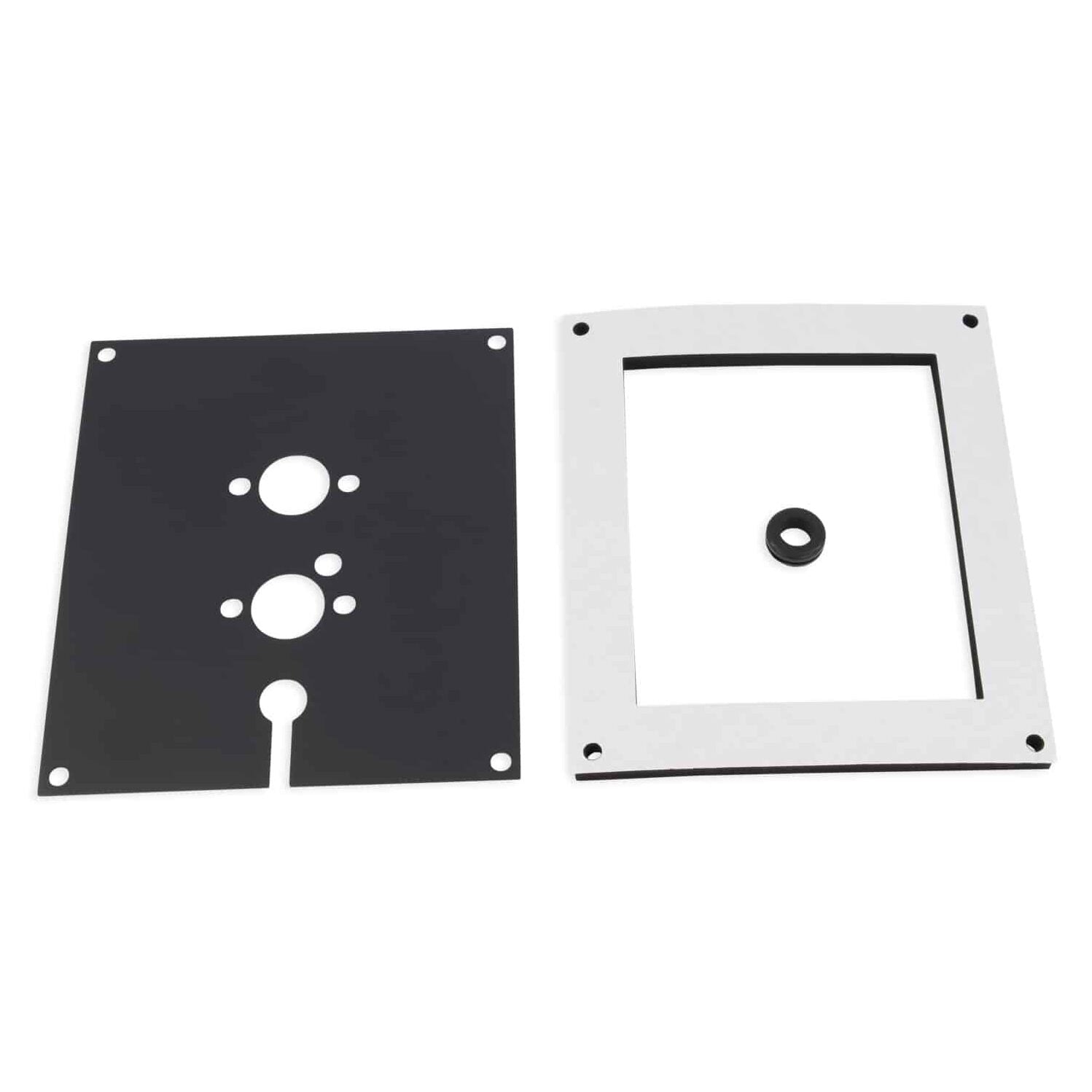

Heater Mounting Plate & Seal

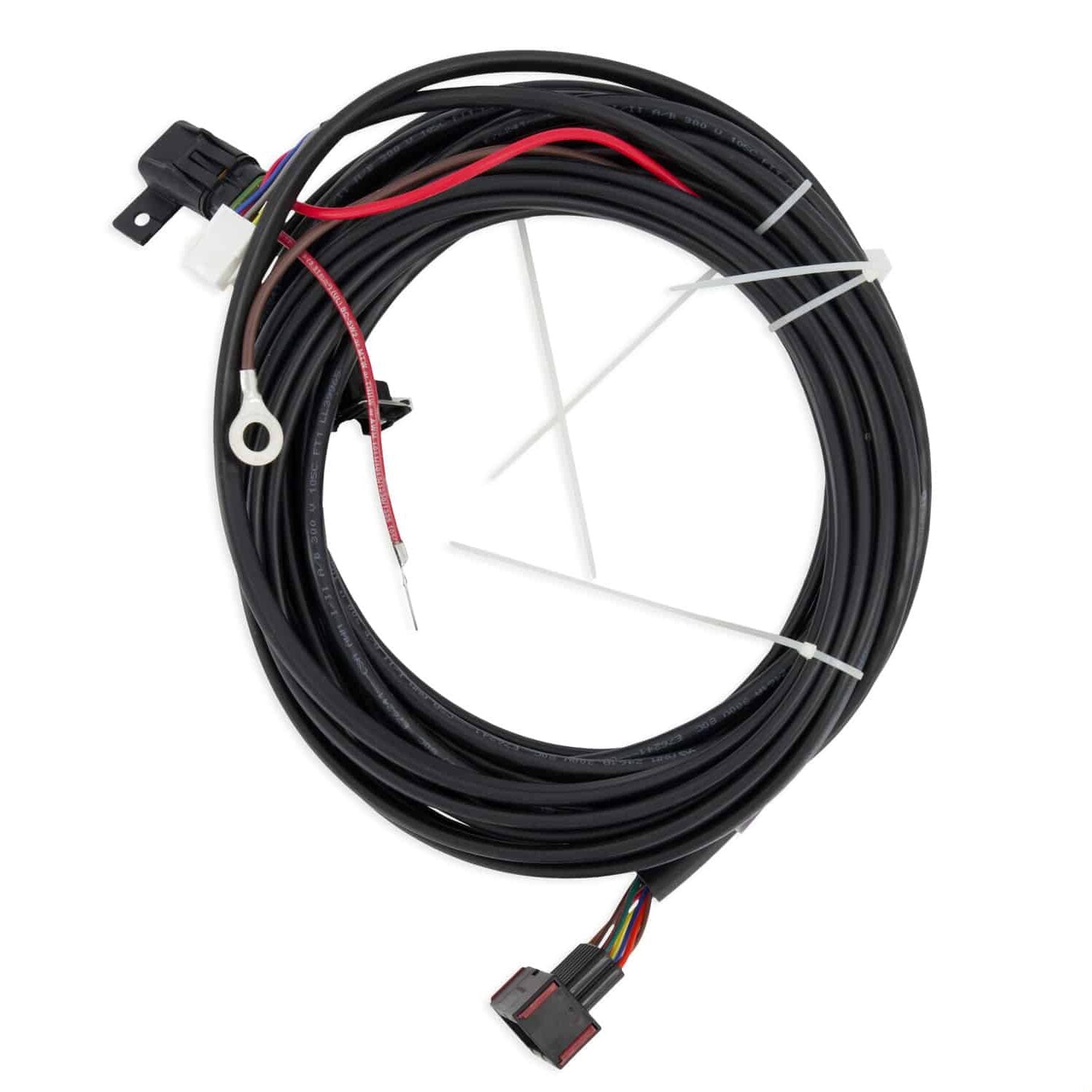

Wiring Harness (Made in Canada)

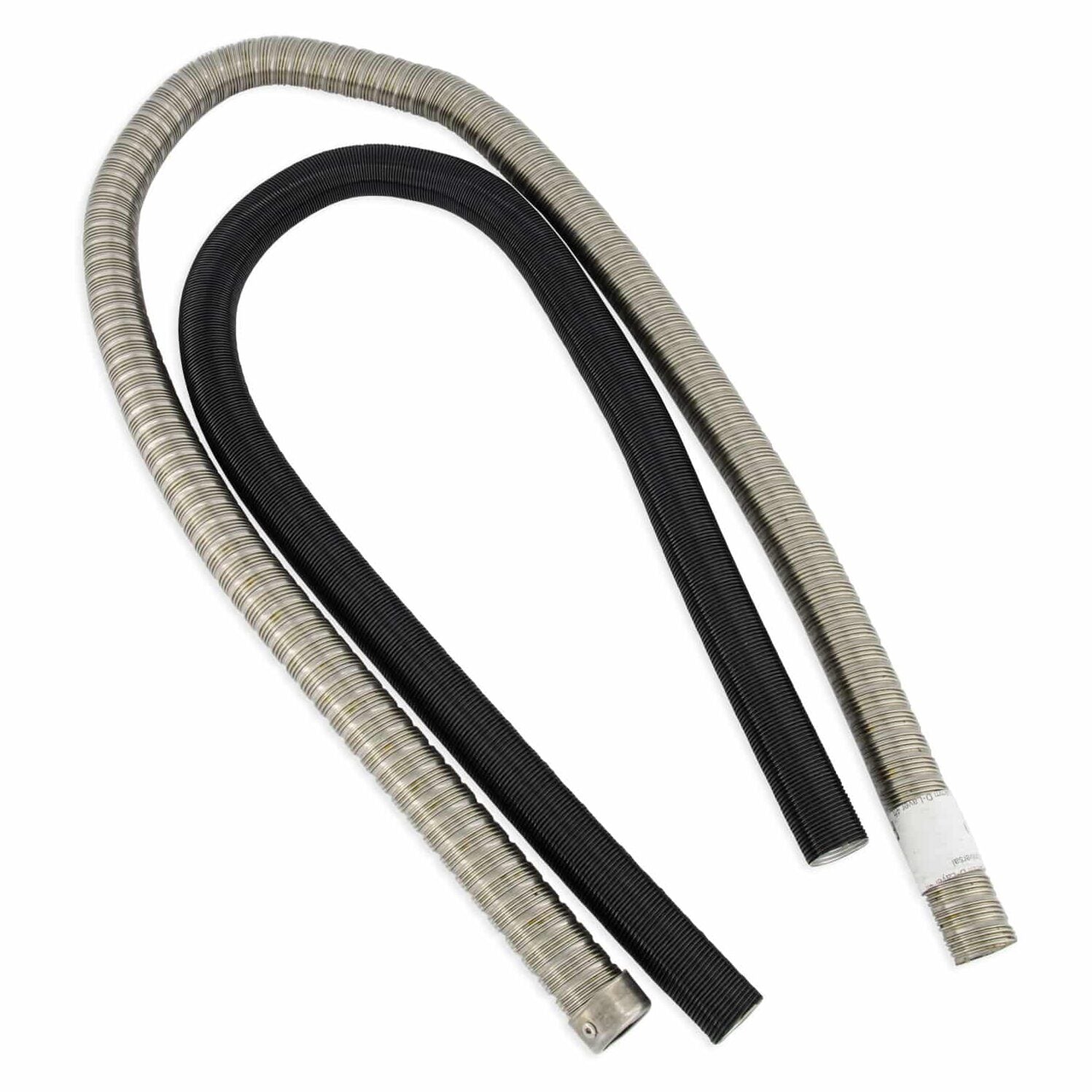

Flexible Stainless Steel Exhaust
Combustion Air Intake Tube & Cap

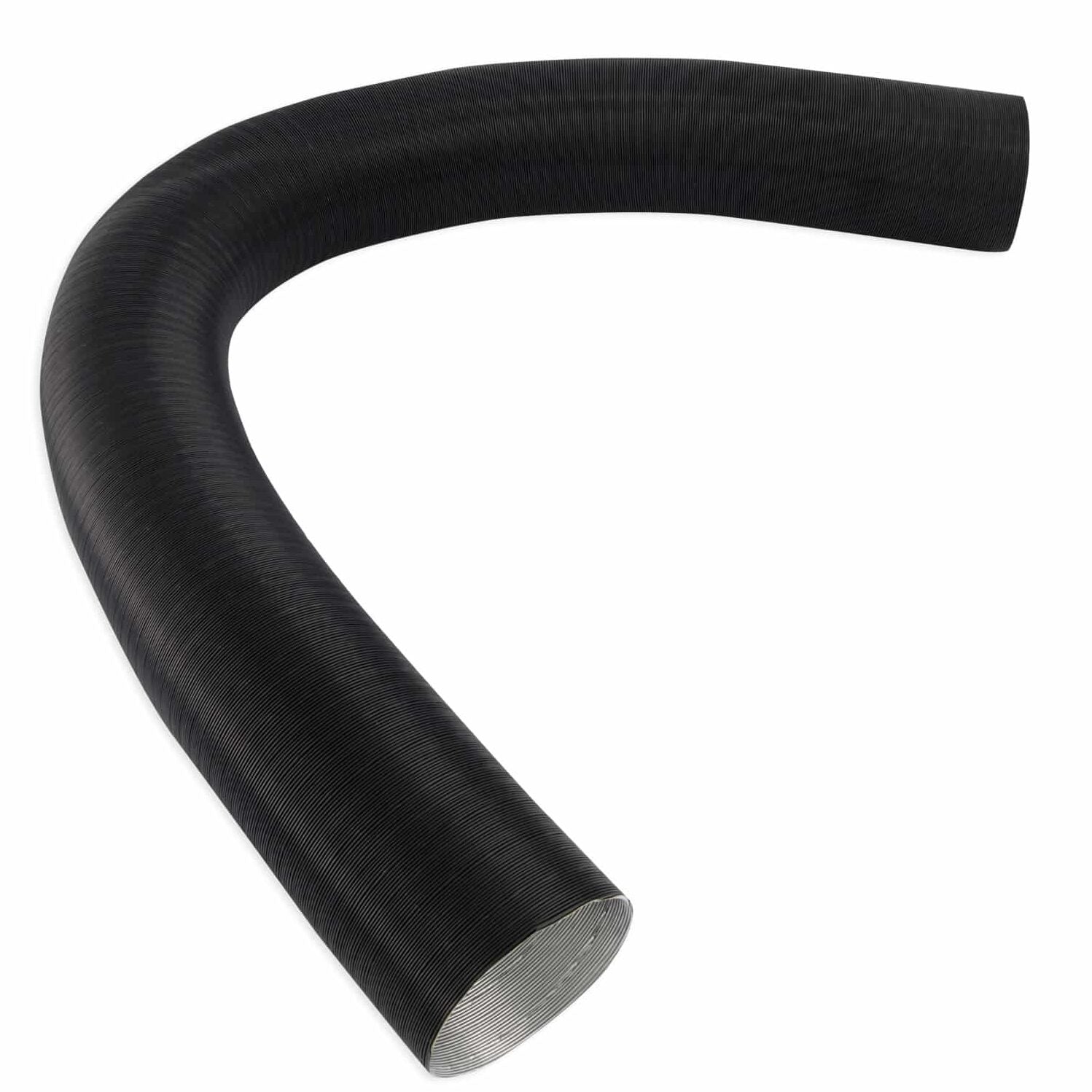

Hot Air Ducting Hose

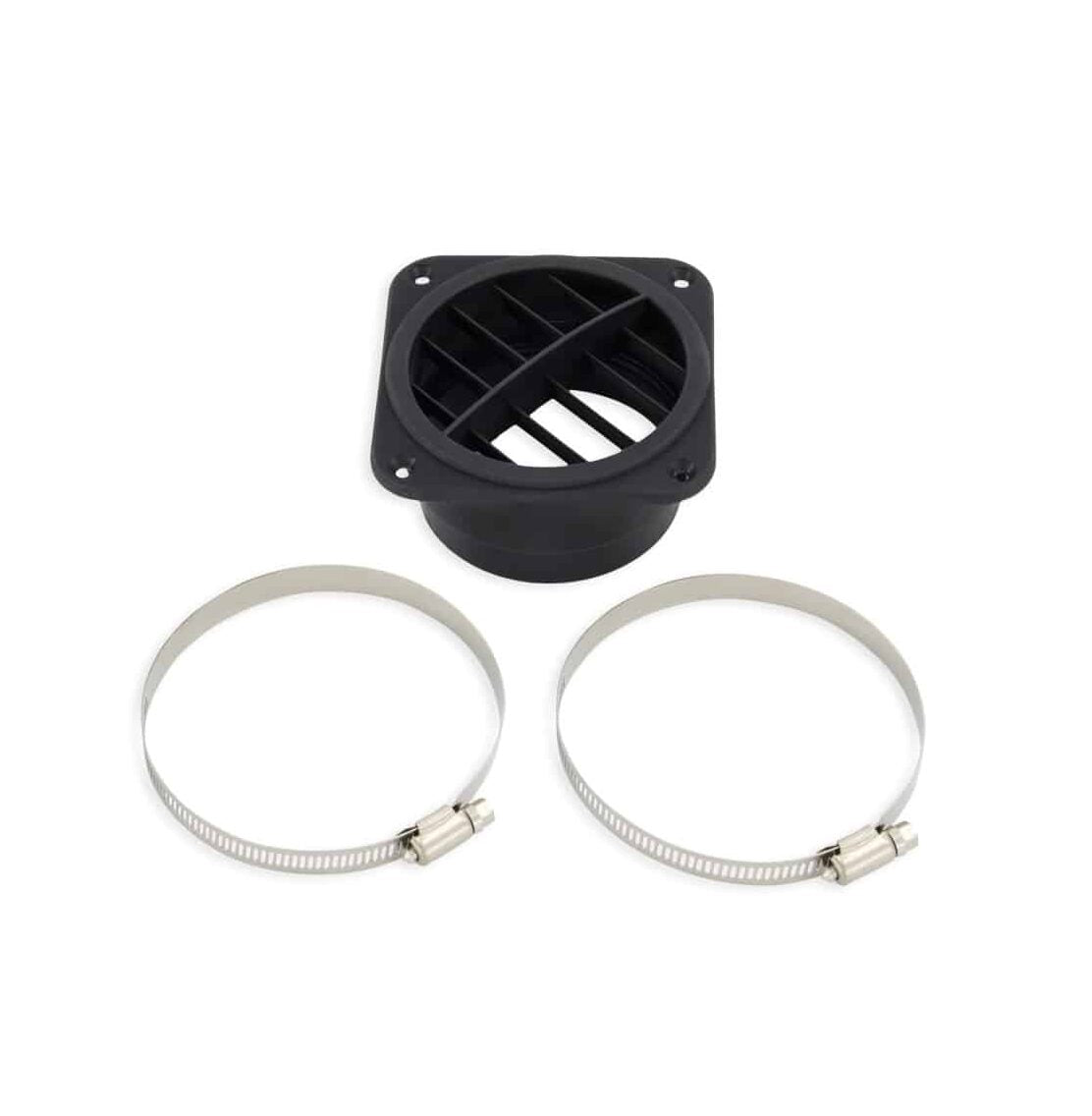

Air Outlet Adjustable Vent
Ducting Hose Clamps

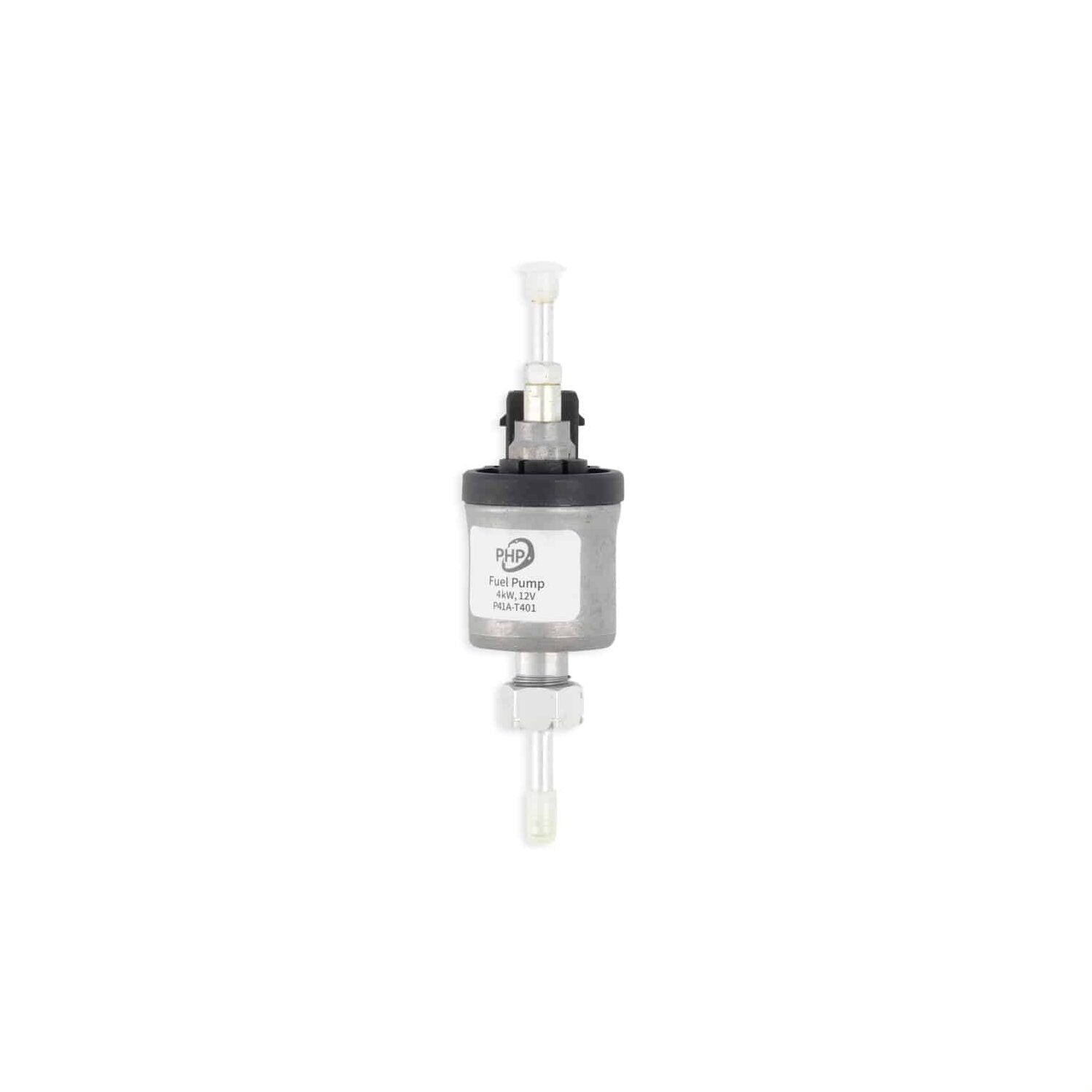

Fuel Metering Pump
Fuel Pickup Tube & Fuel Tube Hardware Kit
Fuel Filter
All required hardware (nuts, screws, washers) for installation are provided in kit
