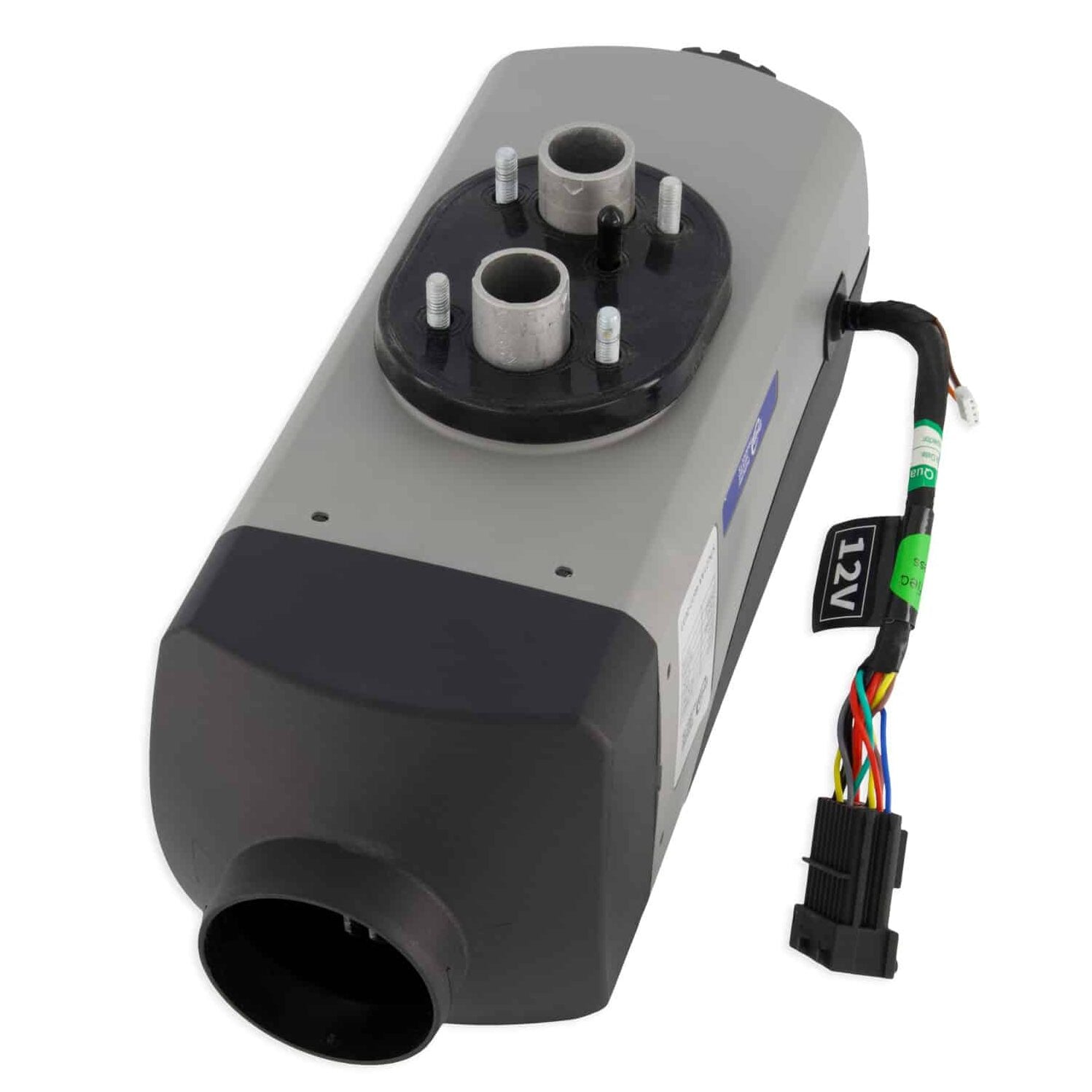

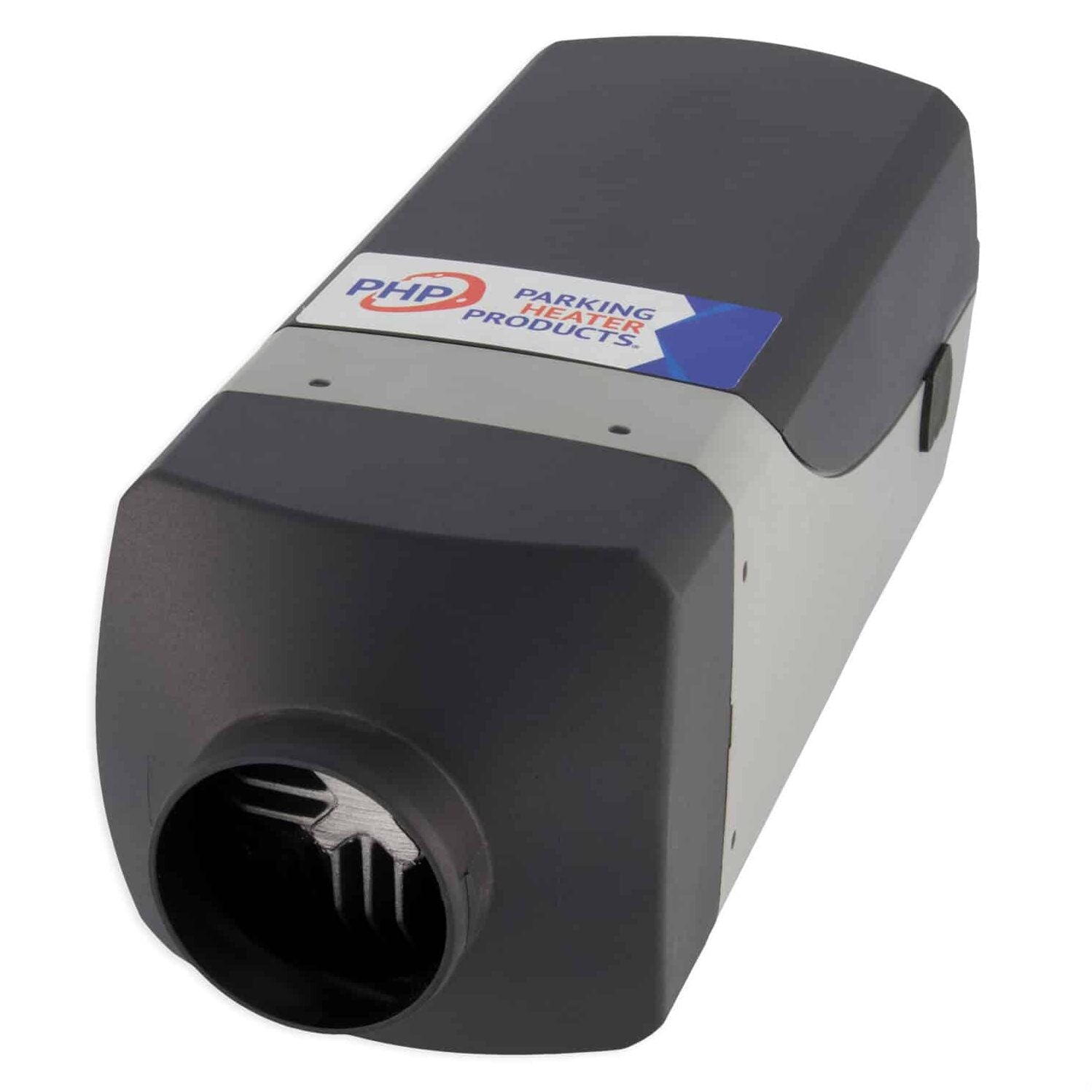

PHP PH21A Air Heater Vehicle Kit - 2kW 12V Diesel

Name: PHP PH21A Air Heater Vehicle Kit - 2kW 12V Diesel
Brand: DKSI
SKU: PH21A-A
Price: 995.32 CAD
Availability: InStock

PH21A-A

$995.32 CAD

In stock

The PH21A heater is designed to provide cabin heating for trucks, off-highway equipment, RVs and boats by using on-board diesel fuel and battery systems. Operation is simple and the heater provides a safe and reliable alternative to engine idling or need for electrical plug ins.

Fully secure checkout
Trusted by thousands
Rated and reviewed

Question about this product?

We're happy to help.

product details

P21A Air Heater Performance Specifications:

Heating Mode	High	Medium	Low
Heating Capacity KW (BTU)	2.0 (6,824)	1.5 (5,118)	1.1 (3,753)
Fuel Consumption l/h (US Gallon)	0.21 (0.06)	0.16 (0.04)	0.12 (0.03)
Air Flow M^3/min (CFM)	1.65 (58)	1.19 (42)	0.72 (25)
Power Consumption - WATT	34	23	13
Start-up Power - WATT	≤ 100

Resources

Specifications

Fuel Type	Diesel
Nominal Voltage	12 Volts
Lower Voltage Limit	9 Volt over 20 seconds
Upper Voltage Limit	16.0 Volts over 20 seconds
Overheat Protection	115º C (239º F)
Allowed Ambient Temperature	-40º C to 76º C (-40º F to 168º F)
Weight	2.6 kg (5.7 lbs)
Overall Dimensions	Length 335 mm (13.19”) Width 116 mm (4.57 “) Height 123 mm (4.84”)
Above Specifications	(± 10%)

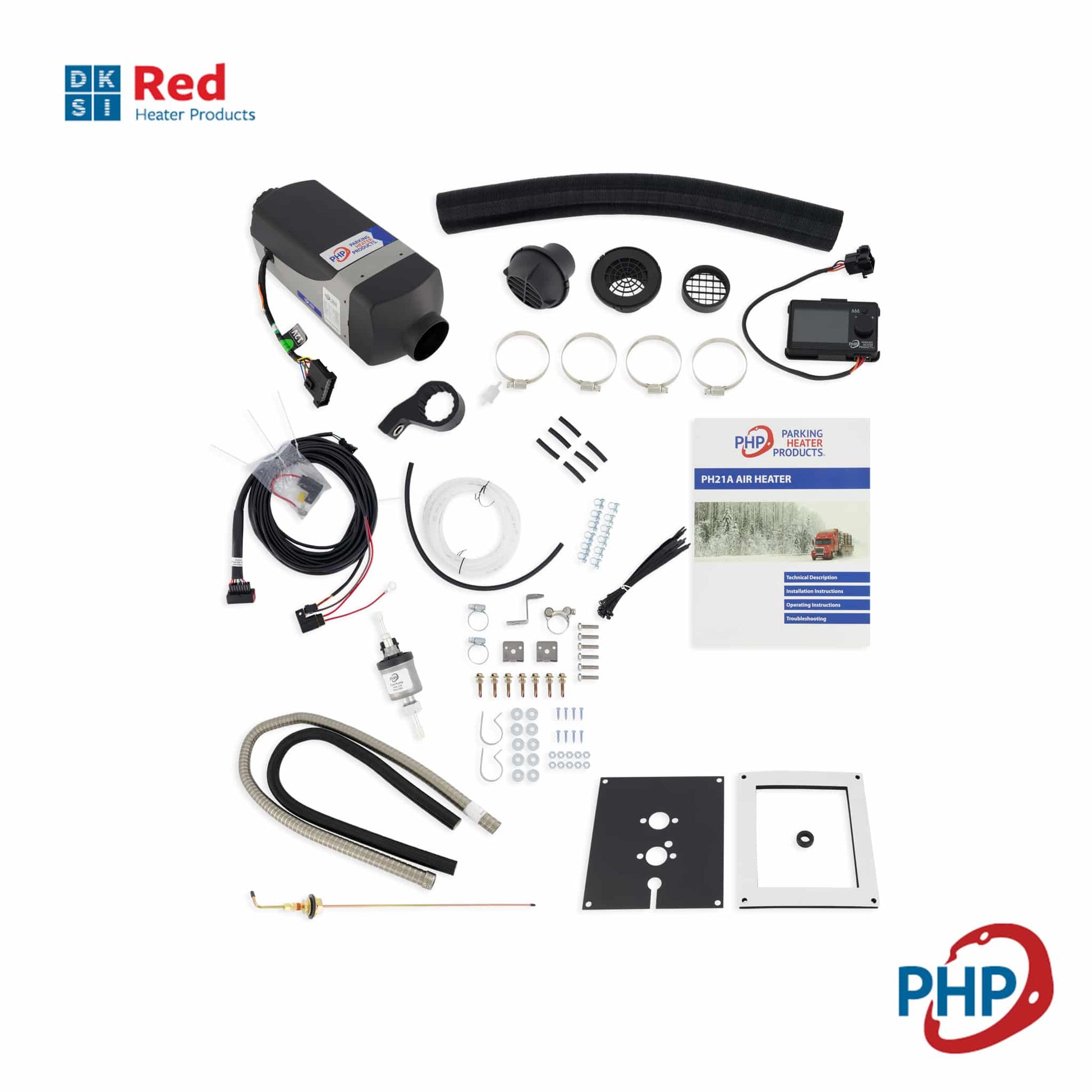

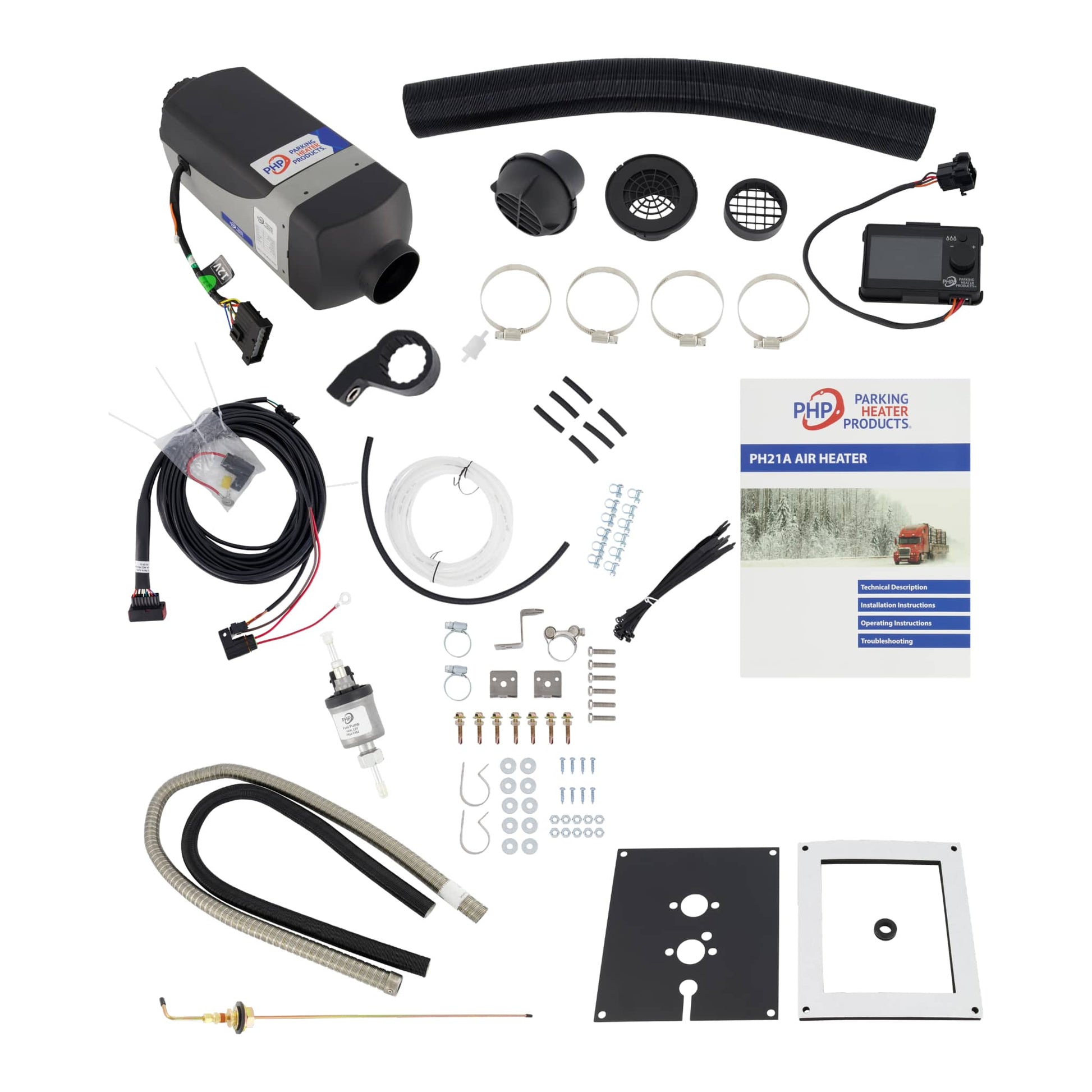

Kit Includes

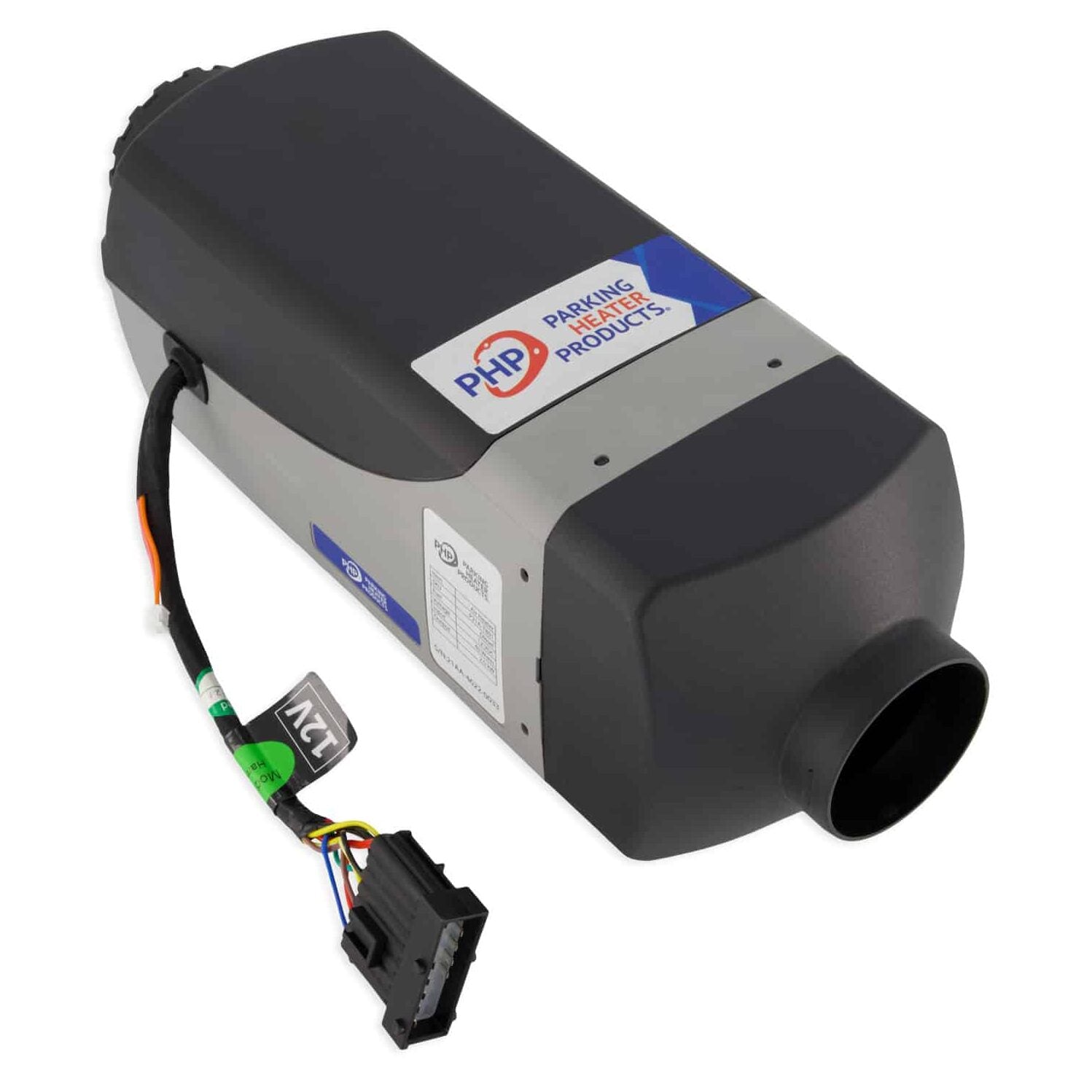

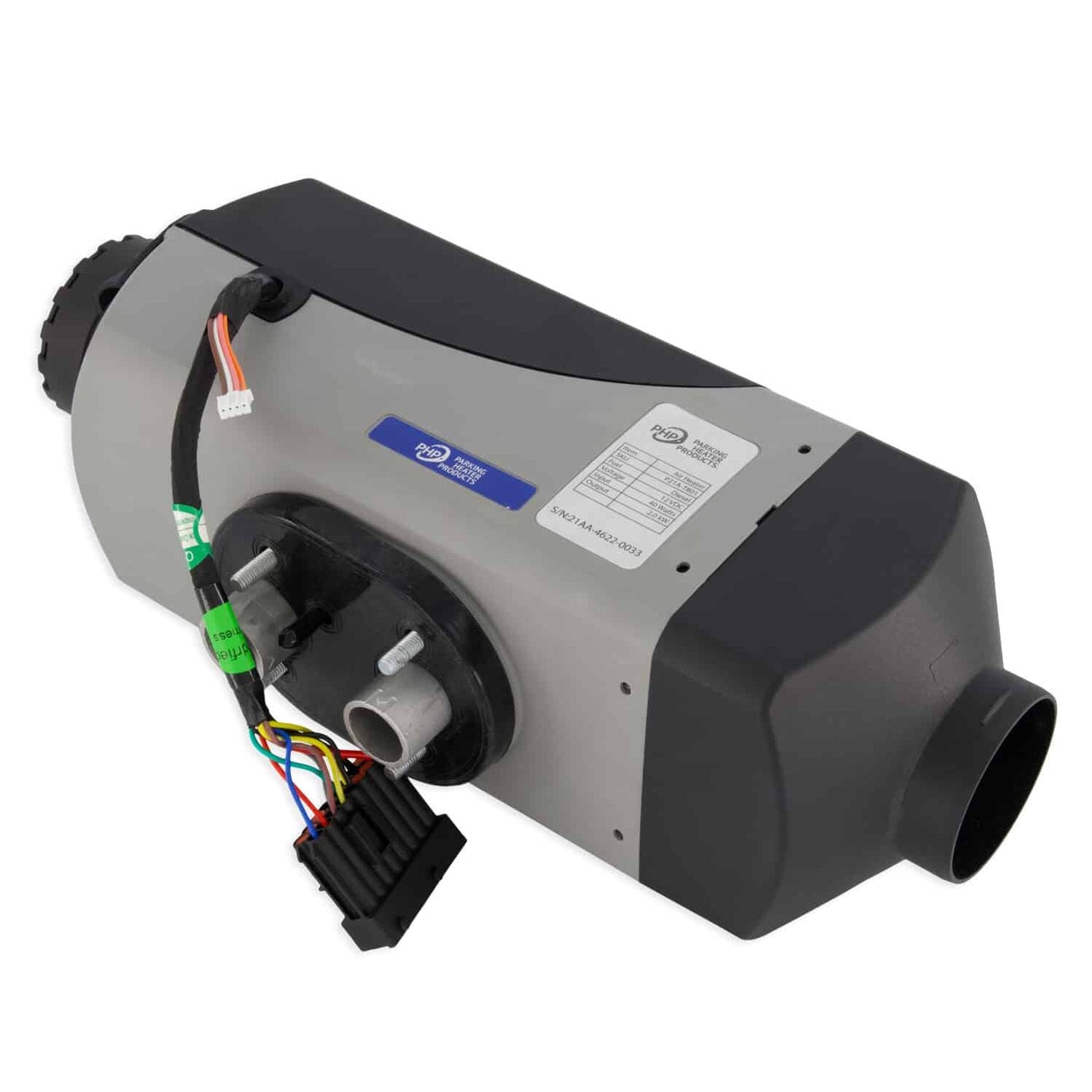

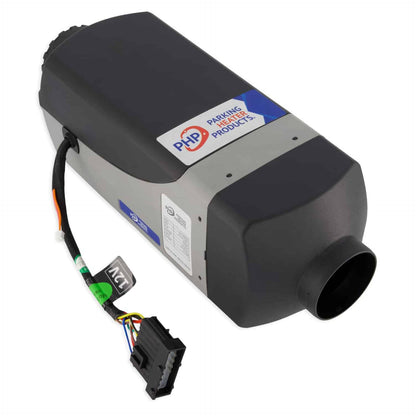

2kW Air Heater

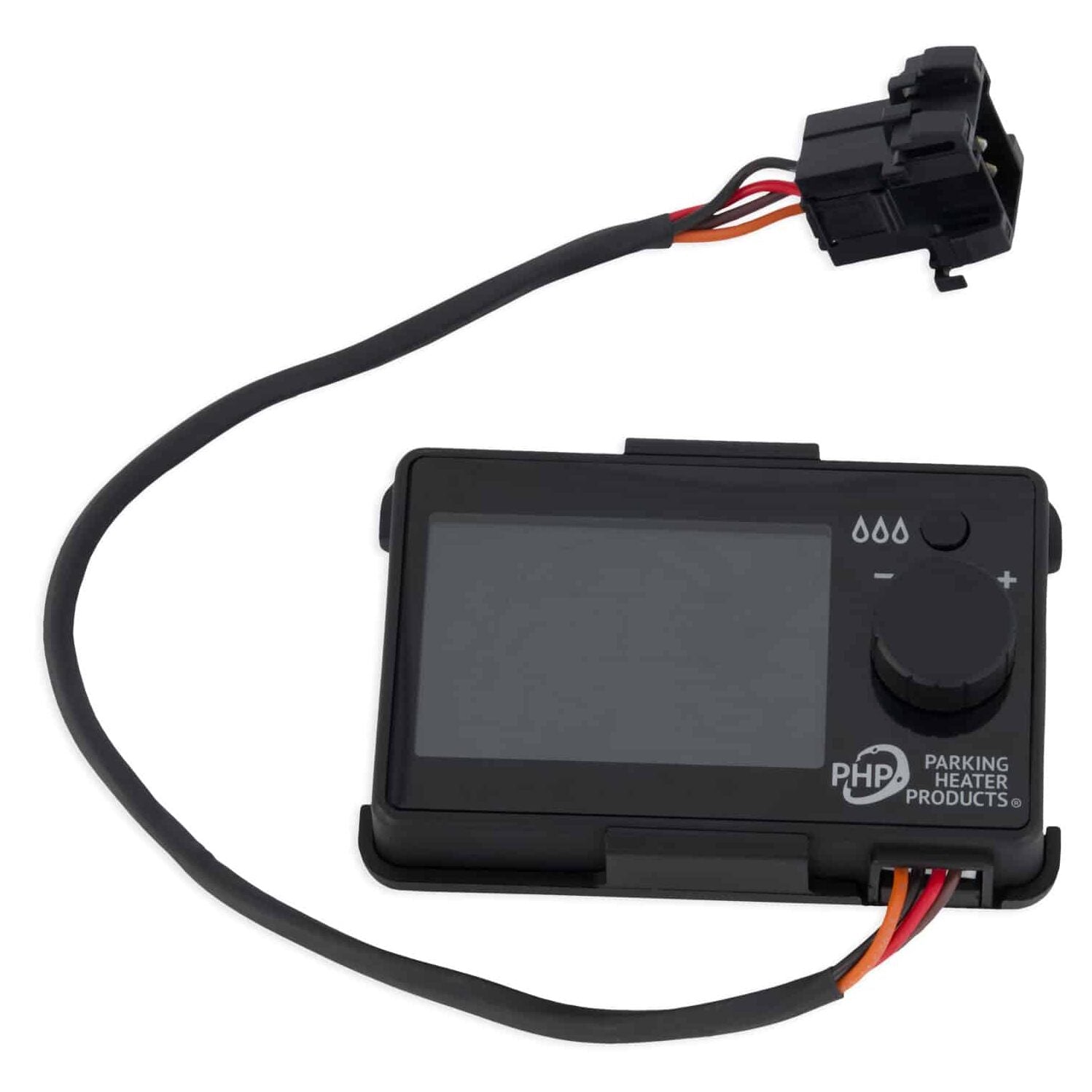

Operating Switch & Mounting Bracket
Heater Mounting Plate & Seal

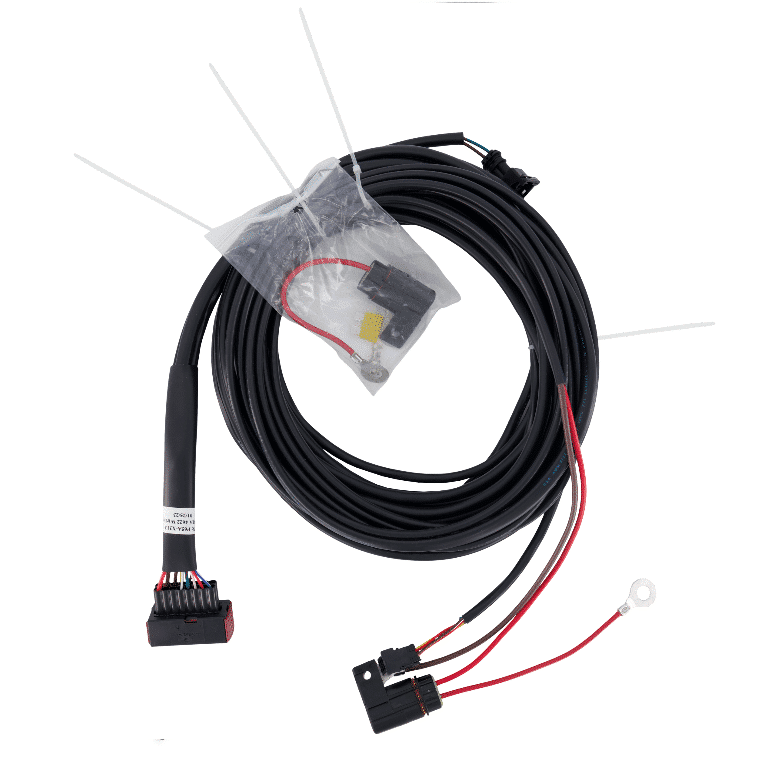

Wiring Harness (made in canada)

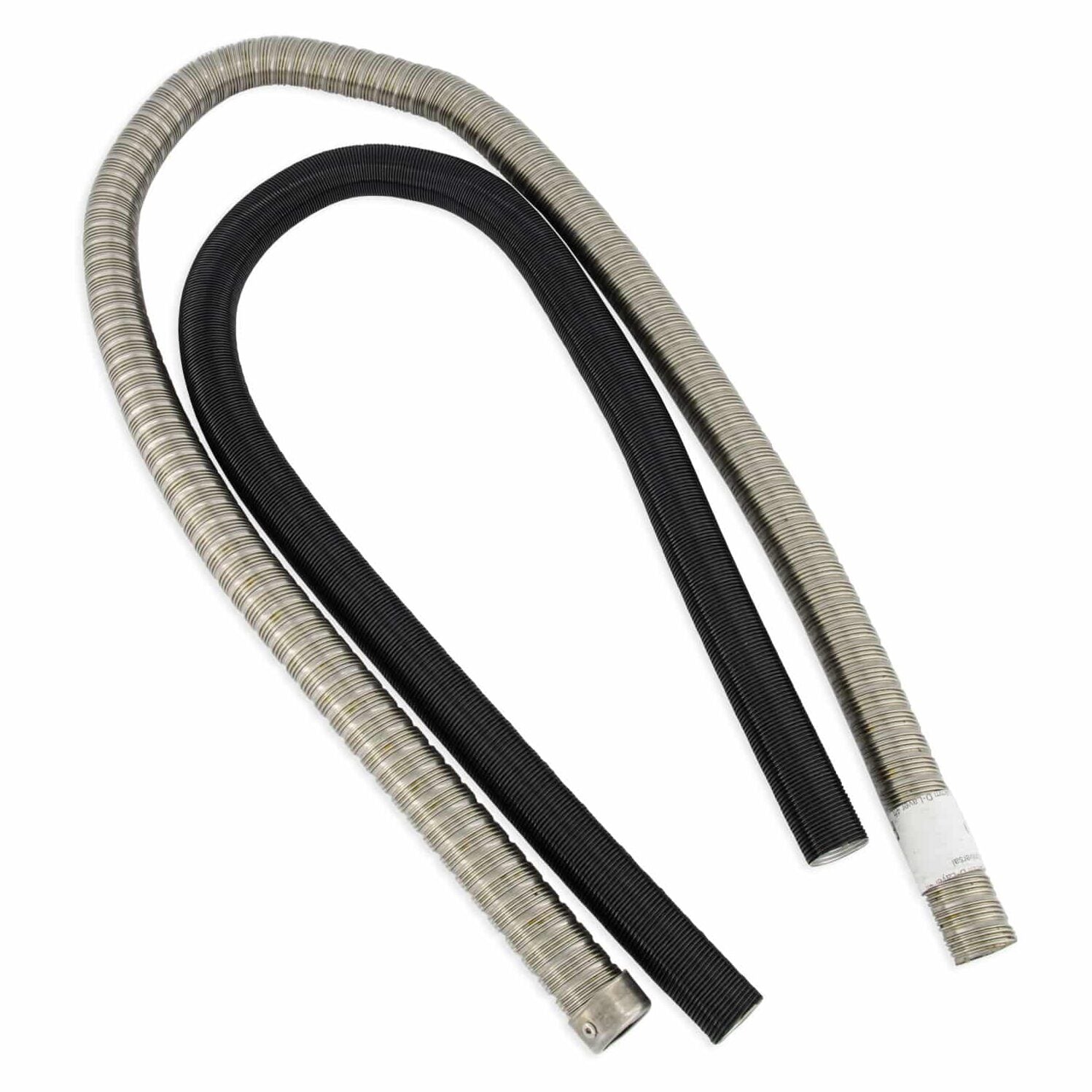

Flexible Stainless Steel Exhaust
Combustion Air Intake Tube & Cap

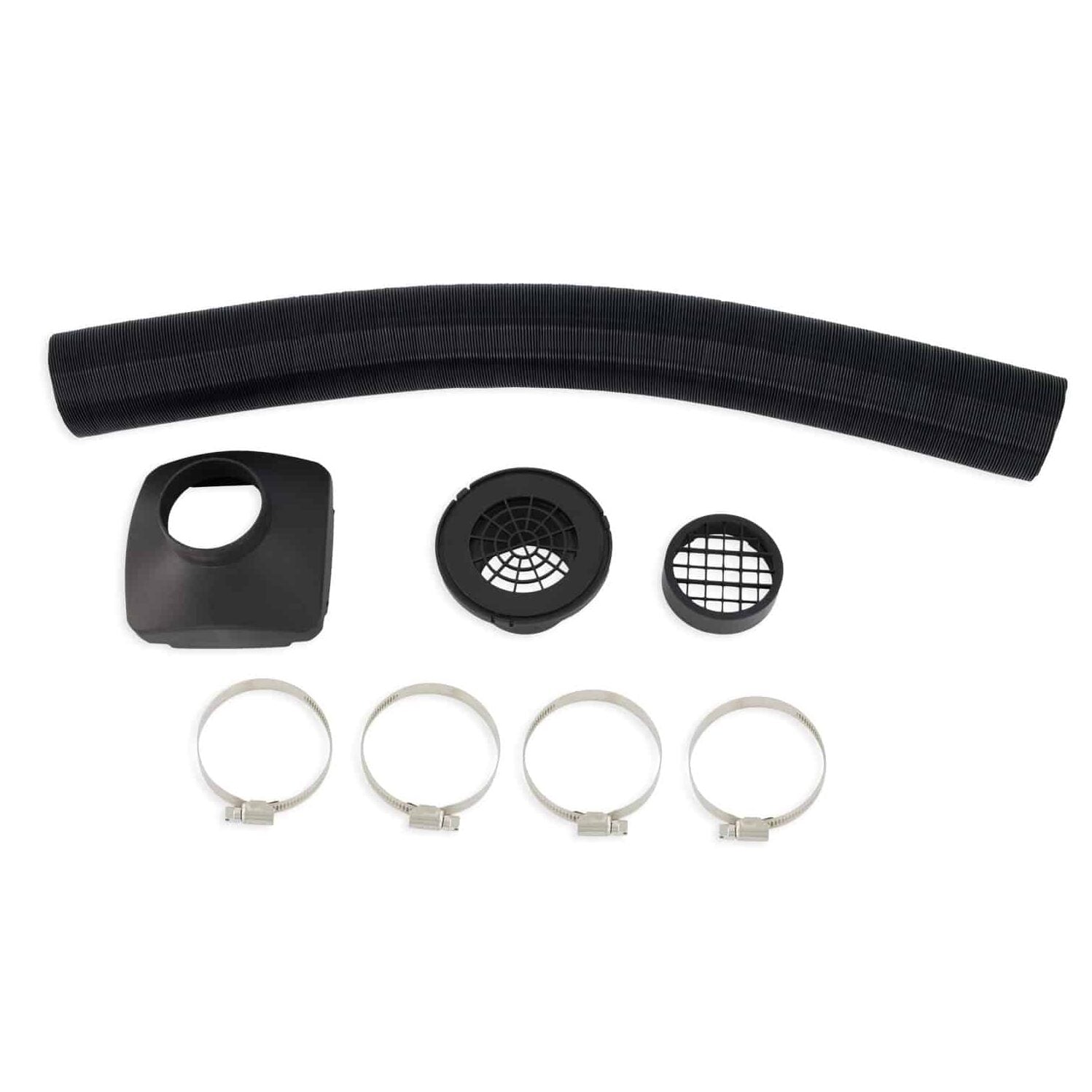

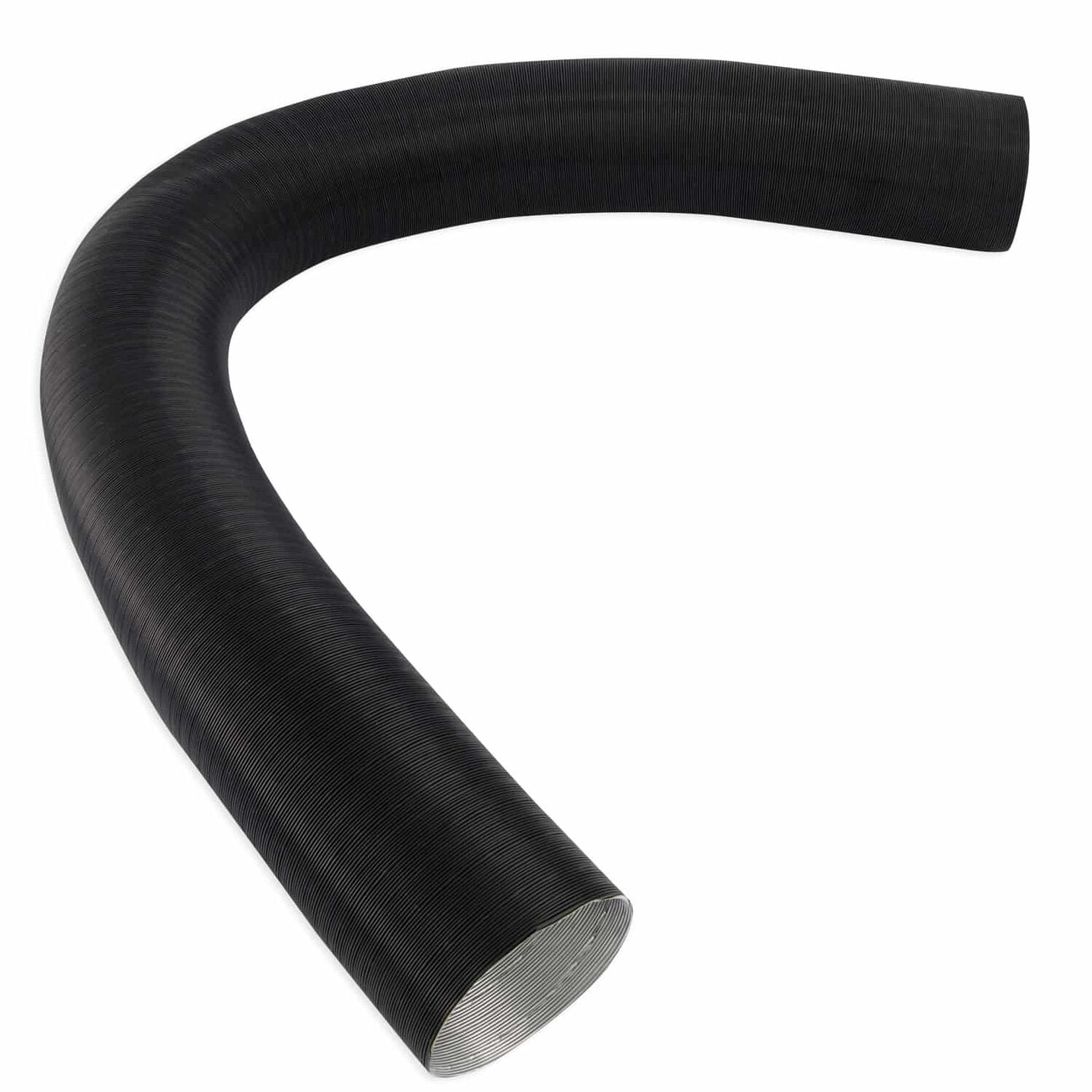

Hot Air Ducting Hose
Air Outlet Adjustable Vent
Ducting Hose Clamps

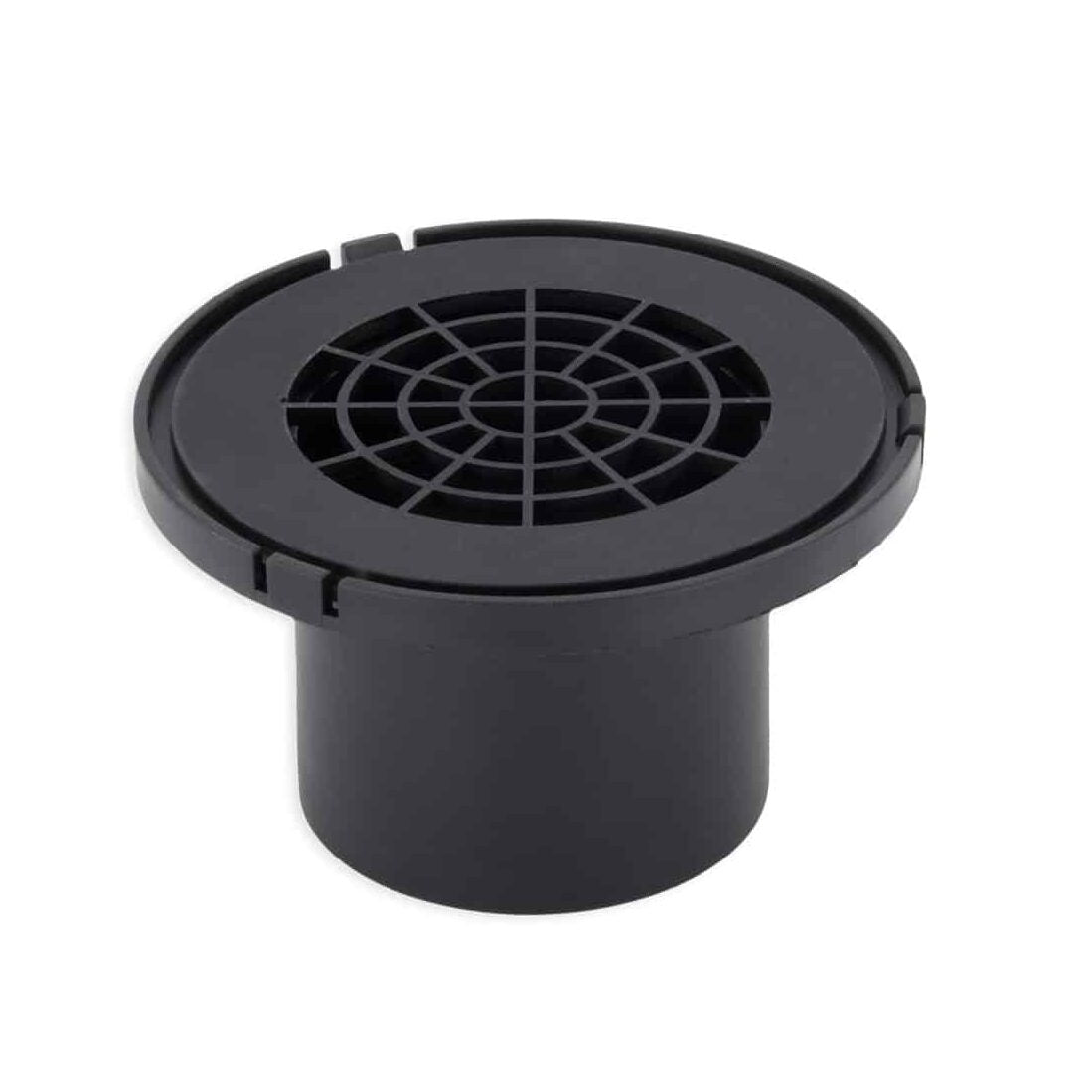

Return Air Inlet

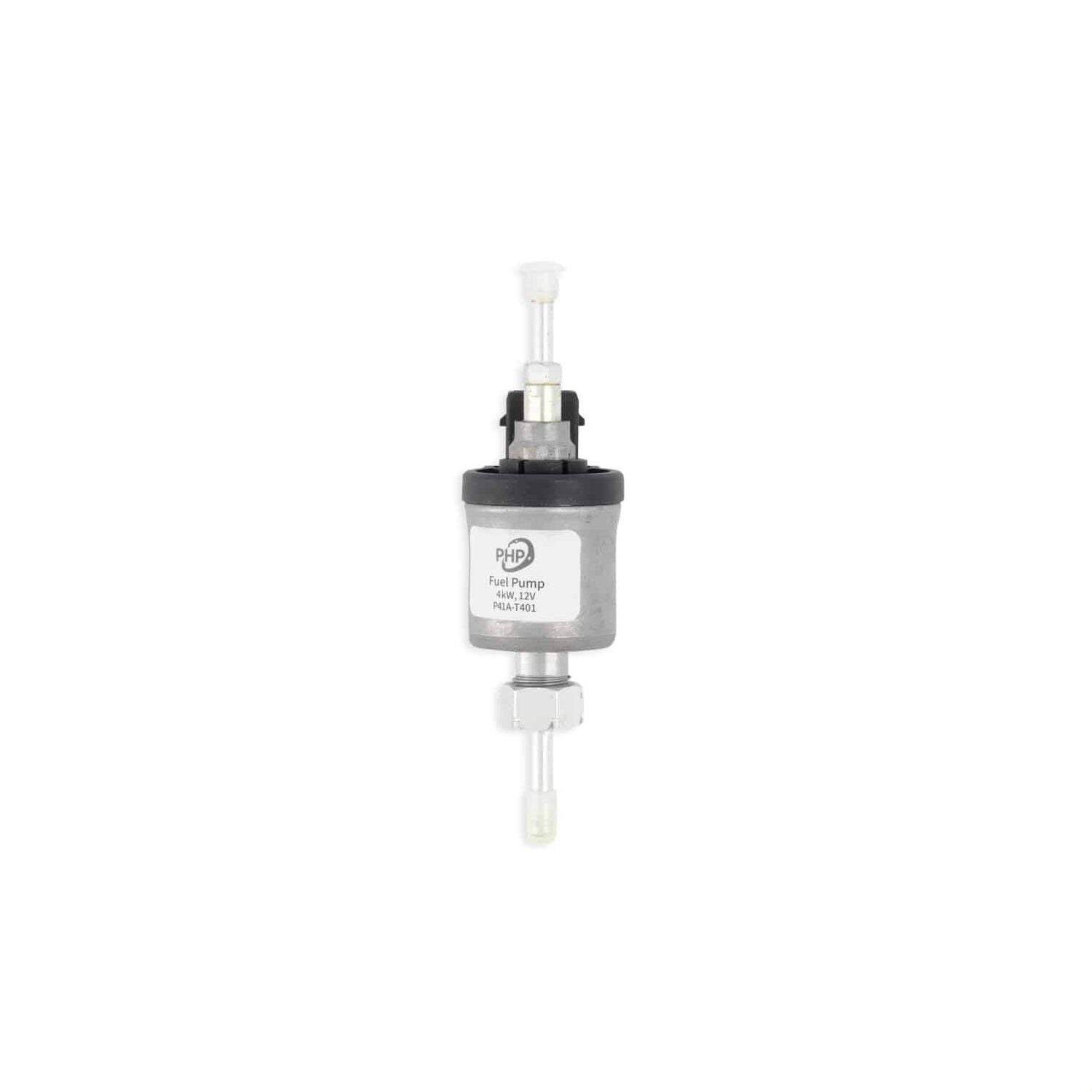

Fuel Metering Pump

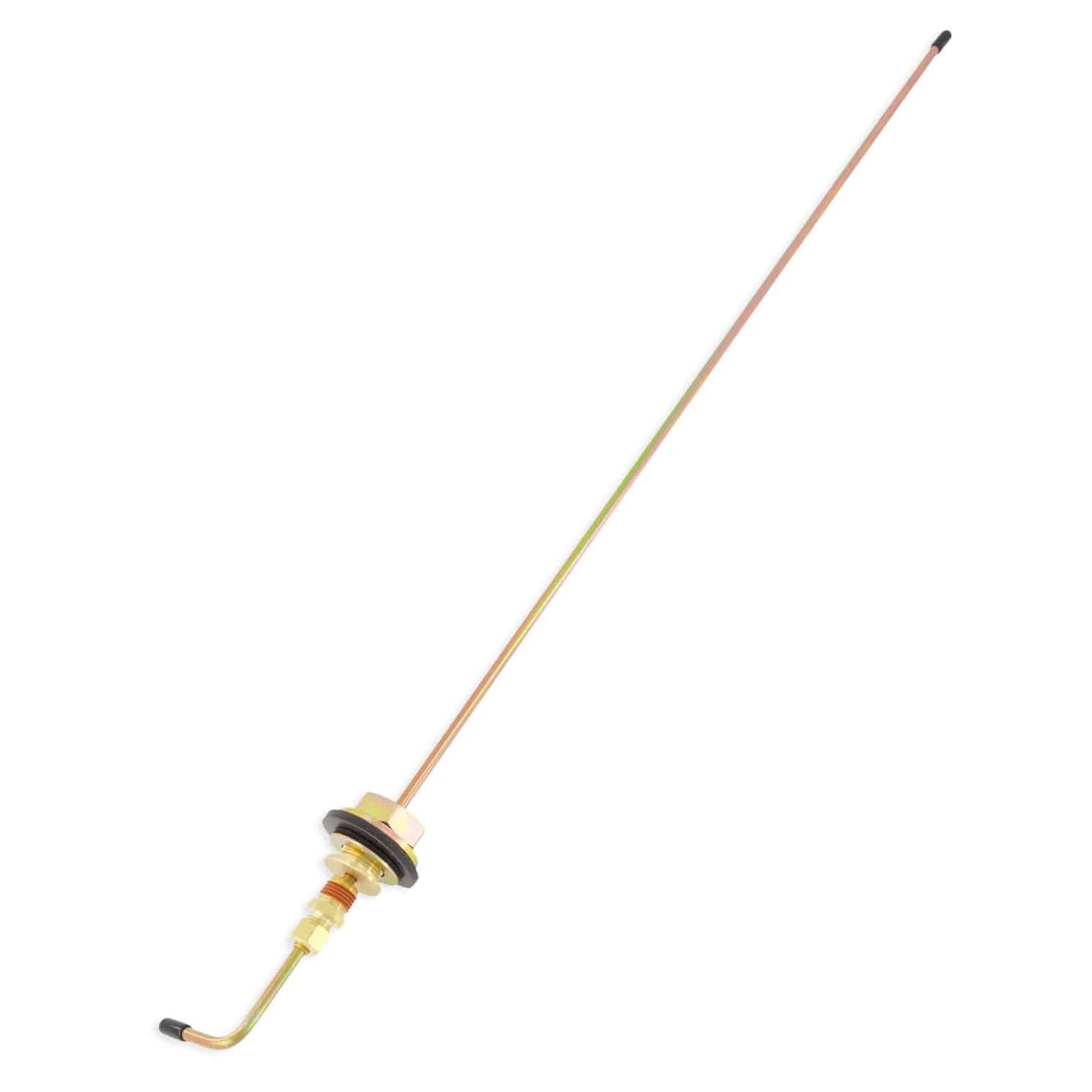

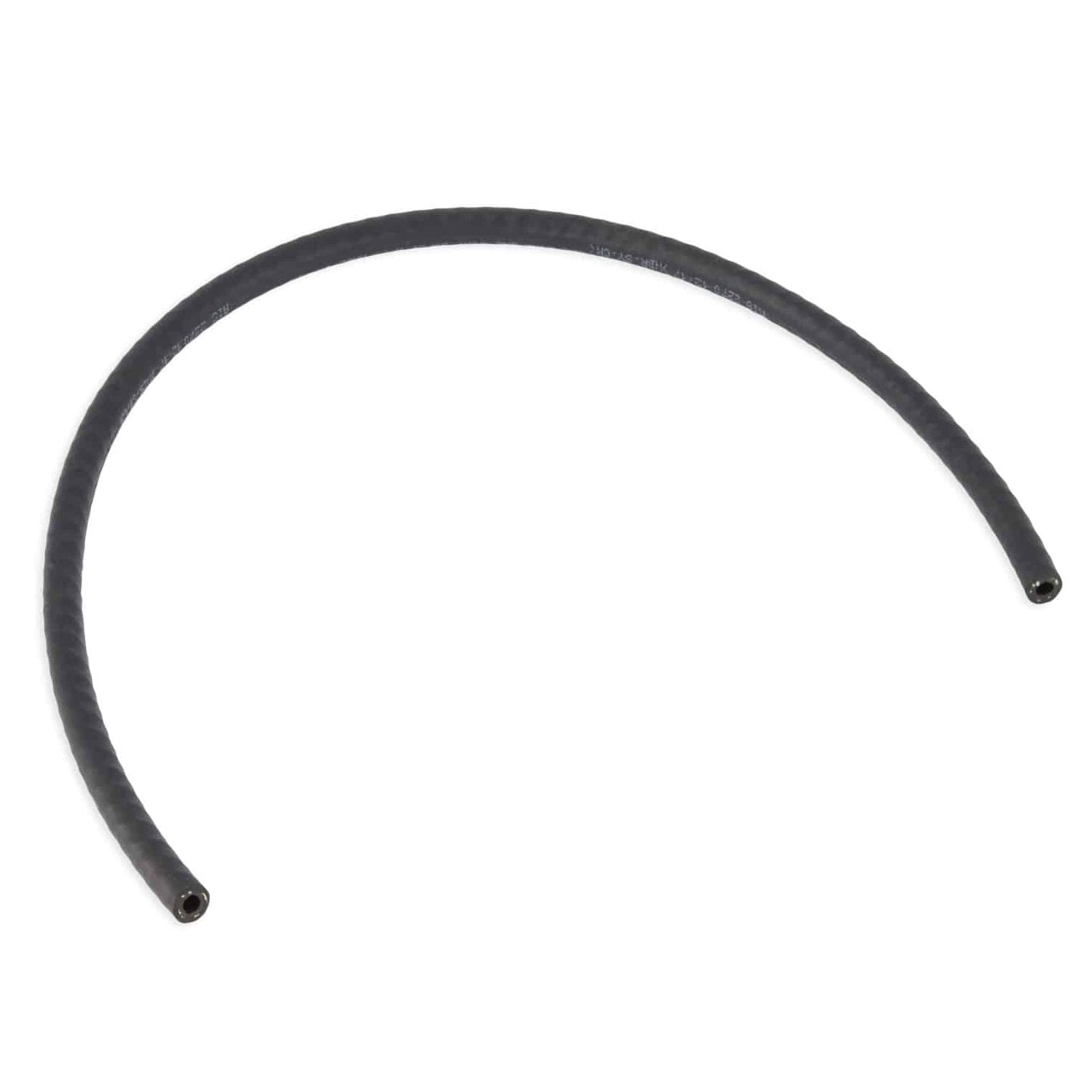

Fuel Pickup Tube & Fuel Tube Hardware Kit
Fuel Filter
All required hardware (nuts, screws, washers) for installation are provided in kit
