PHP, P21A Heater, 2kW Air, 12V, Diesel
P21A-T801
Parking Heater Products P21A Bunk Heater 2kW 12V Diesel. *HEATER ONLYcomplete kit here The PHP P21A is a smaller model with a lower heating capacity compared to the P41A and provides a heat output of 2.2 kW (7,500 BTU/h). The P21A model is often suitable for smaller vehicles and spaces, such as cars, vans, camper vans, and smaller RVs.
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Question about this product?
We're happy to help.
product details
Parking Heater Products P21A Bunk Heater 2kW 12V Diesel. *HEATER ONLY complete kit here The PHP P21A is a smaller model with a lower heating capacity compared to the P41A and provides a heat output of 2.2 kW (7,500 BTU/h). The P21A model is often suitable for smaller vehicles and spaces, such as cars, vans, camper vans, and smaller RVs.
P21A Air Heater Performance Specifications:
| Heating Mode | High | Medium | Low |
| Heating Capacity KW (BTU) | 2.0 (6,824) | 1.5 (5,118) | 1.1 (3,753) |
| Fuel Consumption l/h (US Gallon) | 0.21 (0.06) | 0.16 (0.04) | 0.12 (0.03) |
| Air Flow M^3/min (CFM) | 1.65 (58) | 1.19 (42) | 0.72 (25) |
| Power Consumption - WATT | 34 | 23 | 13 |
| Start-up Power - WATT | ≤ 100 |
Resources
Specifications
Specifications
|
Fuel Type |
Diesel |
|---|---|
|
Nominal Voltage |
12 Volts |
|
Lower Voltage Limit |
9 Volt over 20 seconds |
|
Upper Voltage Limit |
16.0 Volts over 20 seconds |
|
Overheat Protection |
115º C (239º F) |
|
Allowed Ambient Temperature |
-40º C to 76º C (-40º F to 168º F) |
|
Weight |
2.6 kg (5.7 lbs) |
|

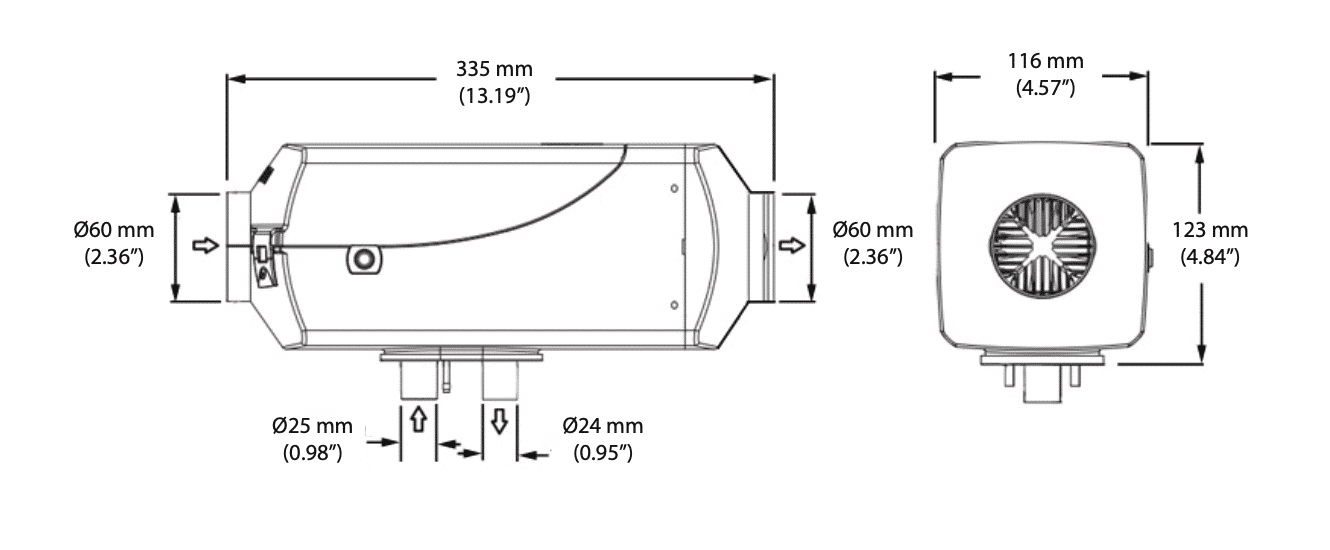

Overall Dimensions |
Length 335 mm (13.19”) Width 116 mm (4.57 “) Height 123 mm (4.84”) |
|
Above Specifications |
(± 10%) |
Kit Includes
Kit Includes
Heater ONLY
Warranty
Warranty
2 Year Warranty on all heaters
