Espar Hydronic D5 | 24V Drop-in Replacement Engine Heater
P51W-F803Mod
Regular price
$1,049.34 CAD
Sale price
$1,049.34 CAD
Regular price
Unit price
per
In stock
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
product details

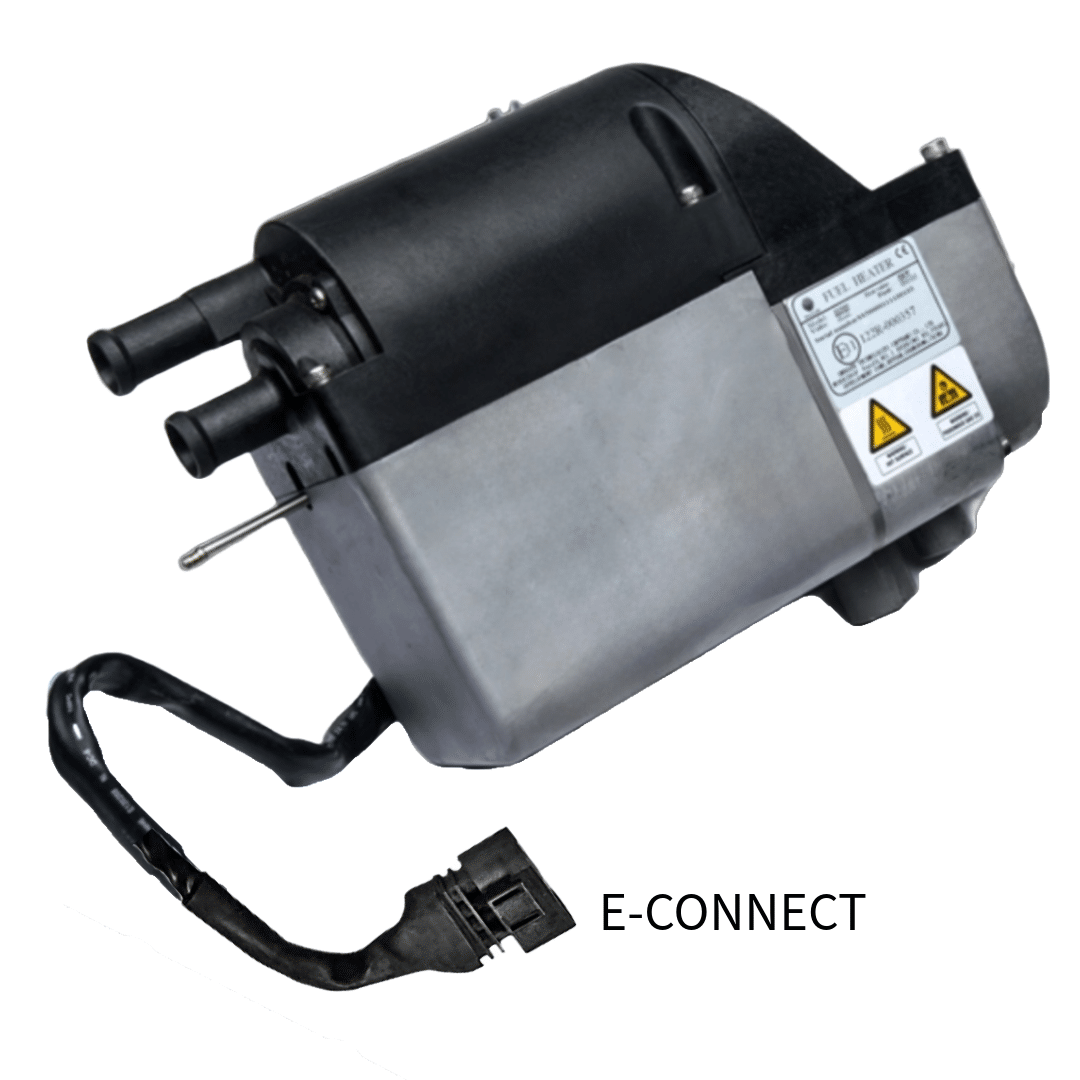

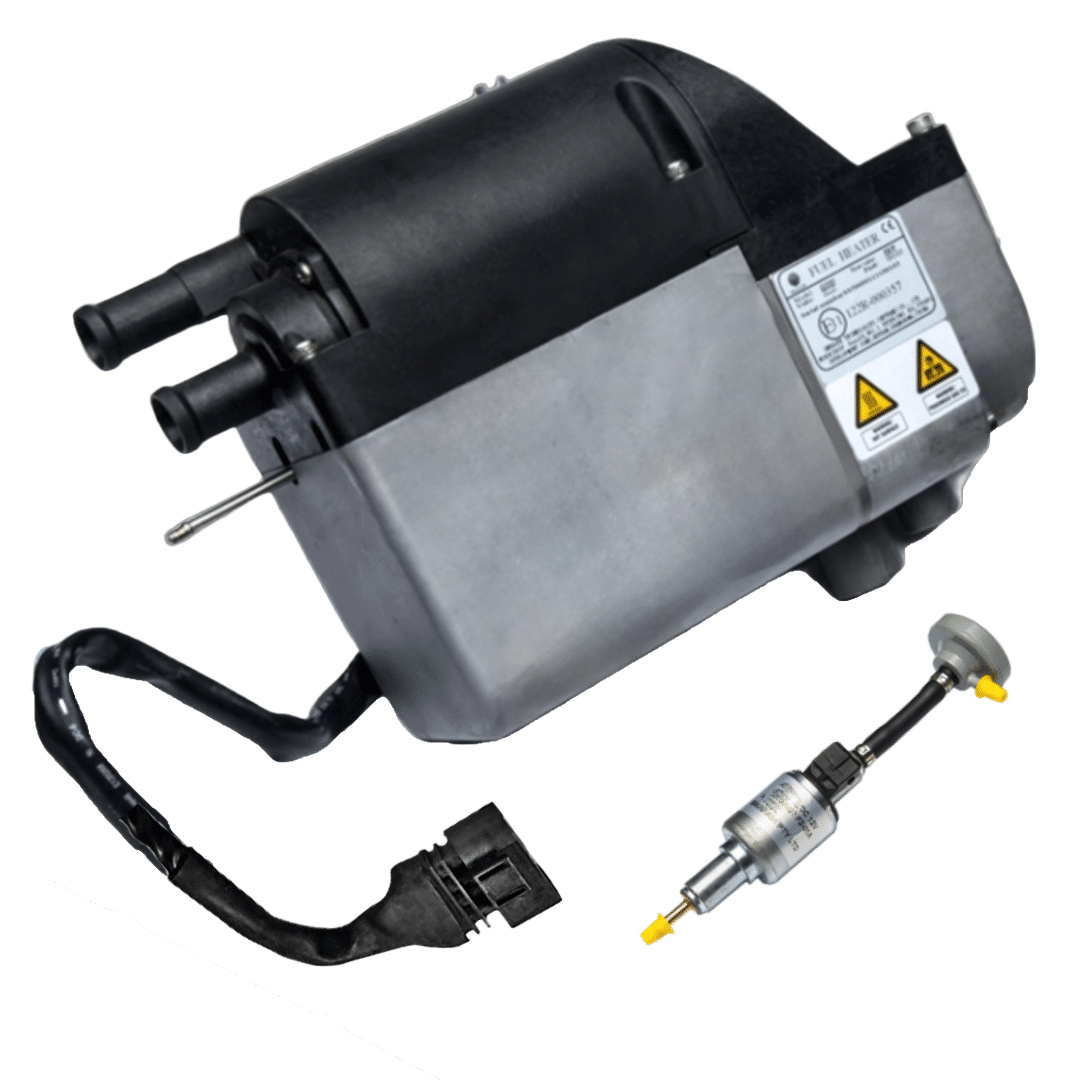

Direct Plug & Play Drop-in Replacement Engine Heater - Replaces Espar / Eberspaecher Hydronic D5, 24V Model - 25.2147.05. Easy installation using existing wiring harness.
Compact design, low volume, easy maintenance, safety protection, auto self diagnosis, low exhaust emission and low operating cost make this heater ideal to use in trucks, boats, farm and construction equipment. Coolant Heater, Model PH51 E-Connect, 5kW, 24V, Diesel
P51W Coolant Heater Performance Specifications:
| Heating Medium | Water / Ethylene Glycol Mixture |
| Fuel | Diesel |
| Heating output | High – 5.0 KW (17,060 BTU) Low – 2.2 KW (7,500 BTU) |
| Fuel Consumption | High – 0.61 L/hr (0.16 US Gal/hr) Low – 0.25 L/hr (0.07 US Gal/hr) |
| Rated Voltage | 12 VDC or 24 VDC |
| Power Consumption Watts | High – 53W Low – 27 W Startup – 120 W |
| Operating Voltage Range | Minimum Voltage: 10.2 V or 21V Under-voltage protection will shutdown the units when the voltage drops to this value Maximum Voltage: 16 V or 32V Over-voltage protection will shutdown the units when the voltage reaches this value |
| Allowable Operating Pressure | 1 bar (15 PSI) |
| Water Capacity (Heater) | 0.175 L (0.046 US Gal) |
| Water Through Capacity | 850-1000 L/h (225-265 US Gal/h) At 10 Kpa Operational Pressure |
| Minimum Water Through-put | 240 L/h (63.50 US Gal/h) |
| Allowable Ambient Temperature | -40°C to 80°C -40°F to 176°F |
| Dry Weight | 3.1 kg (6.8 lbs) |
Above Specifications (± 10%)
Installation Notes - Plug & Play Espar D2 Replacement Heater
