PHP PH51W Coolant Heater Vehicle Kit - 5kW 24V Diesel

Name: PHP PH51W Coolant Heater Vehicle Kit - 5kW 24V Diesel
Brand: DKSI
SKU: PH51W-EB7
Price: 1524.98 CAD
Availability: InStock

PH51W-EB7

$1,524.98 CAD

In stock

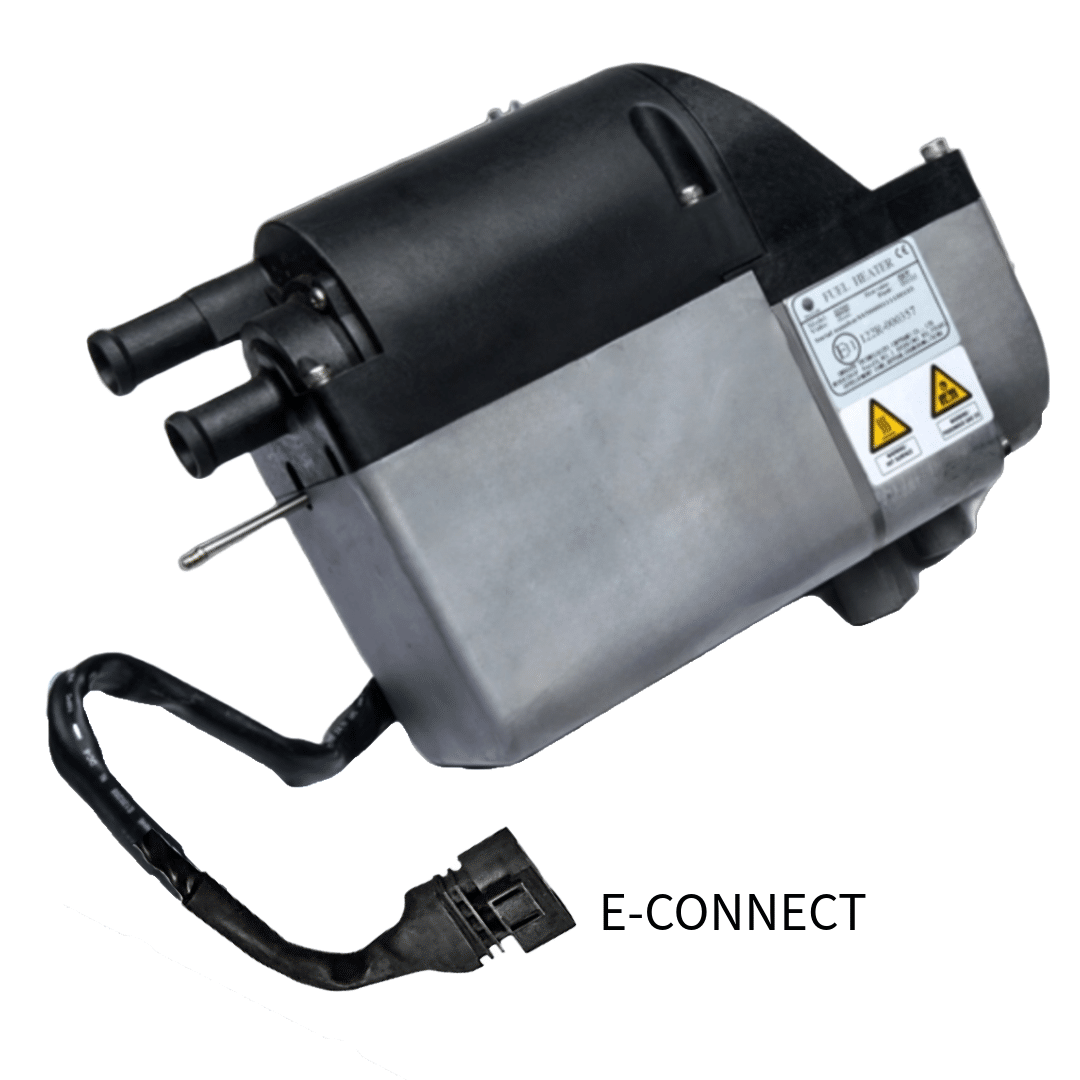

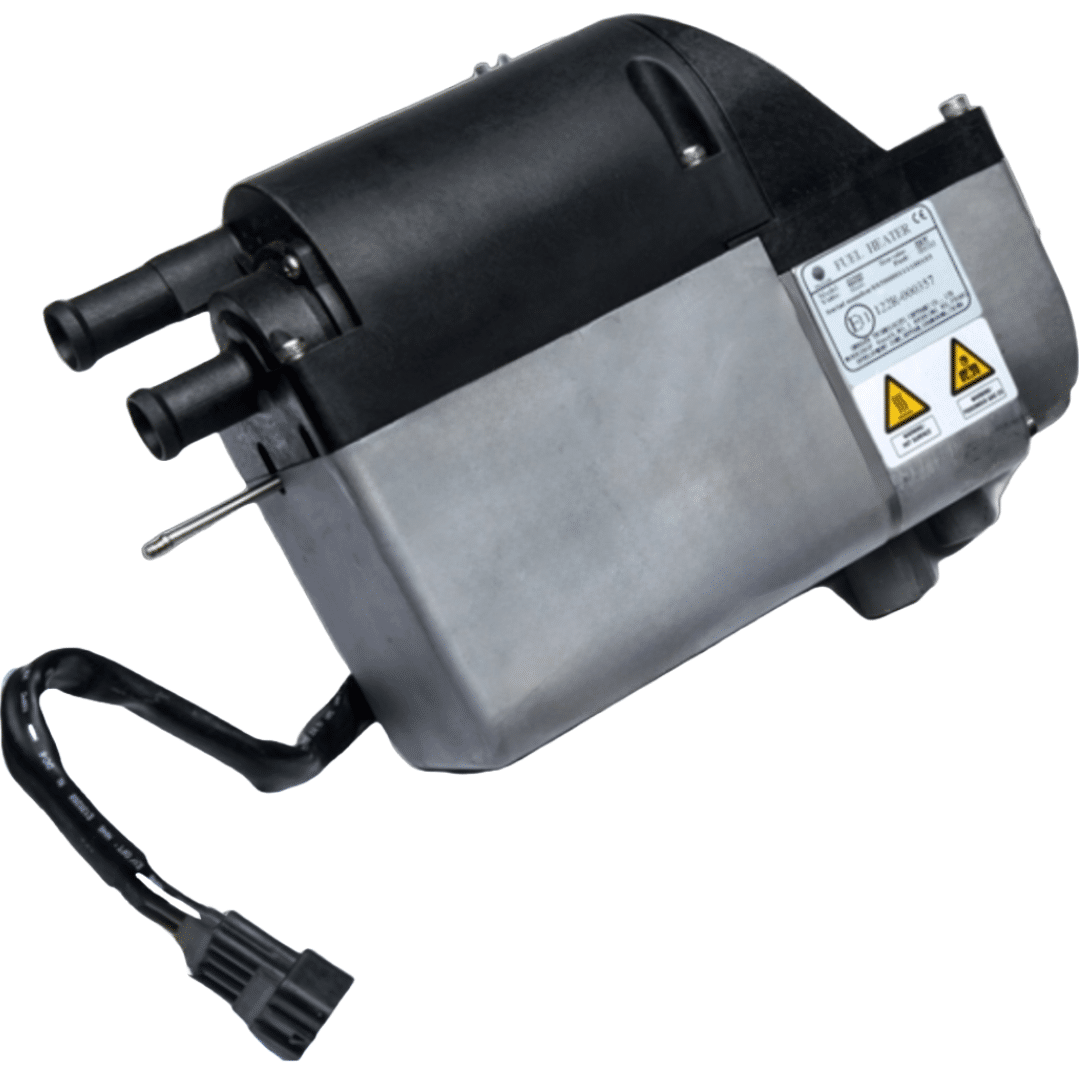

Diesel Fired Engine Heater with Internal Water Pump. The PH51W-EB7 water heaters are designed to be used as auxiliary engine heaters for trucks, RVs, boats, construction and farm equipment. In extreme cold temperatures, the heaters will keep the engine warm and also eliminate cold engine starting problems without the necessity of engines idling or frequent startups. In addition, the heater will provide heat to keep the operator cabin or sleeper berth warm and comfortable for a fraction of the cost in comparison to engine idling.

Fully secure checkout
Trusted by thousands
Rated and reviewed

Question about this product?

We're happy to help.

product details

The PH51W-EB7 water heaters are designed to be used as auxiliary engine heaters for trucks, RVs, boats, construction, and farm equipment. In extremely cold temperatures, the heaters will keep the engine warm and also eliminate cold engine starting problems without the necessity of engine idling or frequent startups. In addition, the heater will provide heat to keep the operator cabin or sleeper berth warm and comfortable for a fraction of the cost in comparison to engine idling.

Compact design, low volume, easy maintenance, safety protection, auto self diagnosis, 7-day timer, low exhaust emission and low operating cost make this heater ideal to use in trucks, boats, farm and construction equipment.

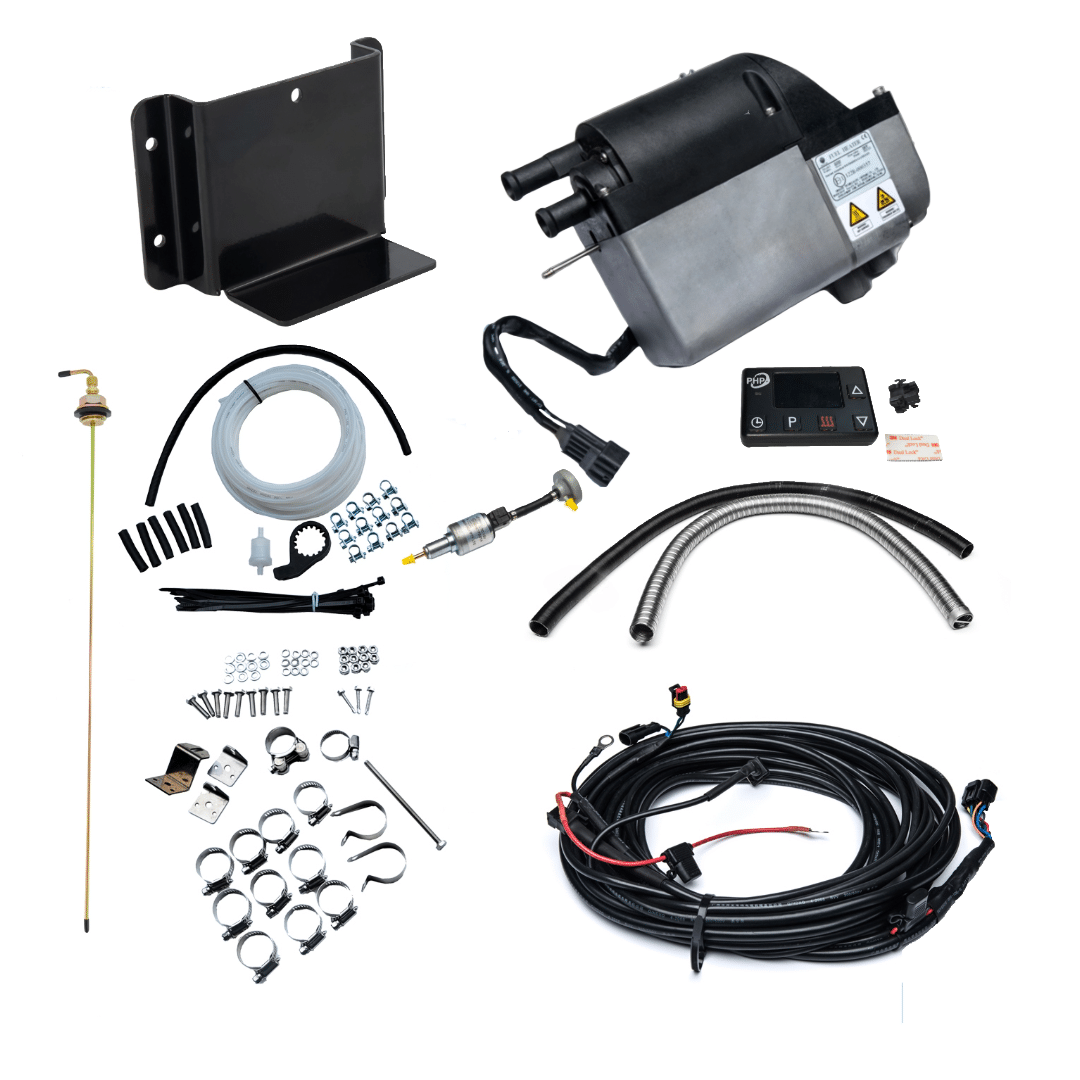

Engine Heater Kit with Internal water pump and 7-Day programmable timer Kit Includes:

5 kW Coolant Heater
Wiring Harness
7 Day Programmable Timer
Fuel Pickup Pipe Assembly
Combustion Inlet Hose 20mm x 1m
Fuel System Hardware Bag
Exhaust Pipe Flexible Double Layer with End Cap 24mm x 1m
Hardware Kit

PH51W-EB7 Coolant Heater Performance Specifications:

Heating Medium	Water / Ethylene Glycol Mixture
Fuel	Diesel
Heating output	High – 5.0 KW (17,060 BTU) Low – 2.2 KW (7,500 BTU)
Fuel Consumption	High – 0.61 L/hr (0.16 US Gal/hr) Low – 0.25 L/hr (0.07 US Gal/hr)
Rated Voltage	12 VDC or 24 VDC
Power Consumption Watts	High – 53W Low – 27 W Startup – 120 W
Operating Voltage Range	Minimum Voltage: 10.2 V or 21V Under-voltage protection will shutdown the units when the voltage drops to this value Maximum Voltage: 16 V or 32V Over-voltage protection will shutdown the units when the voltage reaches this value
Allowable Operating Pressure	1 bar (15 PSI)
Water Capacity (Heater)	0.175 L (0.046 US Gal)
Water Through Capacity	850-1000 L/h (225-265 US Gal/h) At 10 Kpa Operational Pressure
Minimum Water Through-put	240 L/h (63.50 US Gal/h)
Allowable Ambient Temperature	-40°C to 80°C -40°F to 176°F
Dry Weight	3.1 kg (6.8 lbs)
